Steering Shaft Installation Note

  1. Verify that the tilt lever is in the LOCK position.
  2. Tighten the bolts in alphabetical order.

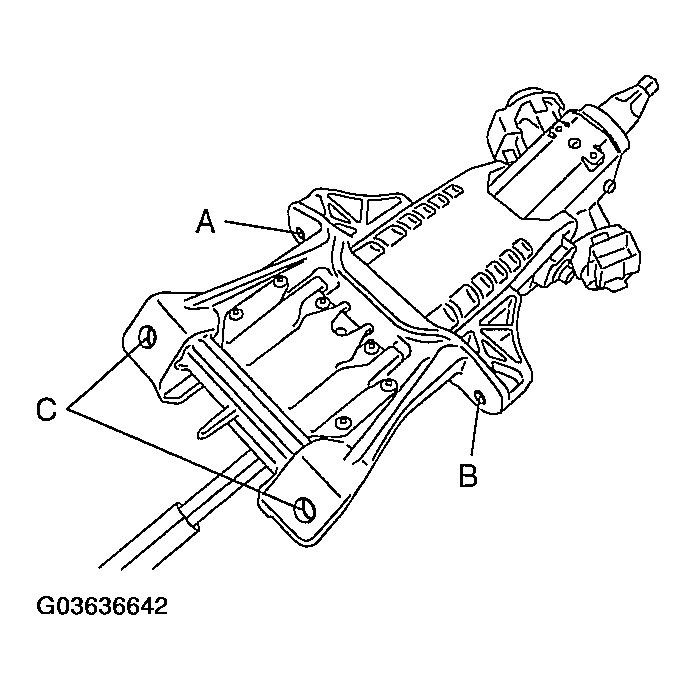

    Fig 1: Steering Shaft Bolts Tightening Sequence
    G03636642Courtesy of MAZDA MOTORS CORP.
