Auto Light-Off Control Module

AUTO LIGHT-OFF CONTROL MODULE INSPECTION

1. Measure the voltage at the auto light-off control module terminals as indicated below.
2. Disconnect the auto light-off control module connector before inspecting for continuity at terminals 1 B, 1 P and 2D.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the auto light-off control module.

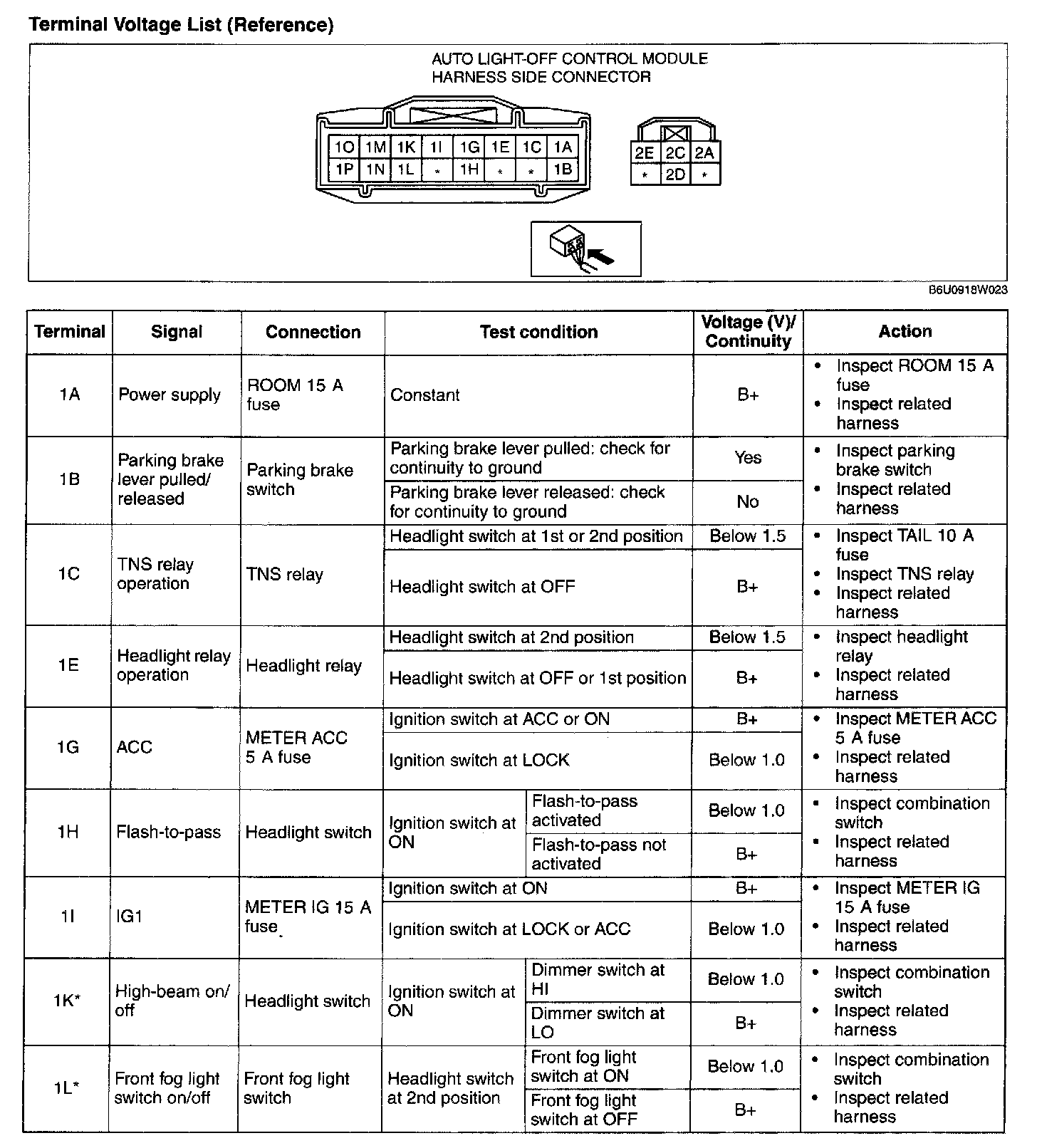

Terminal Voltage List (Reference):

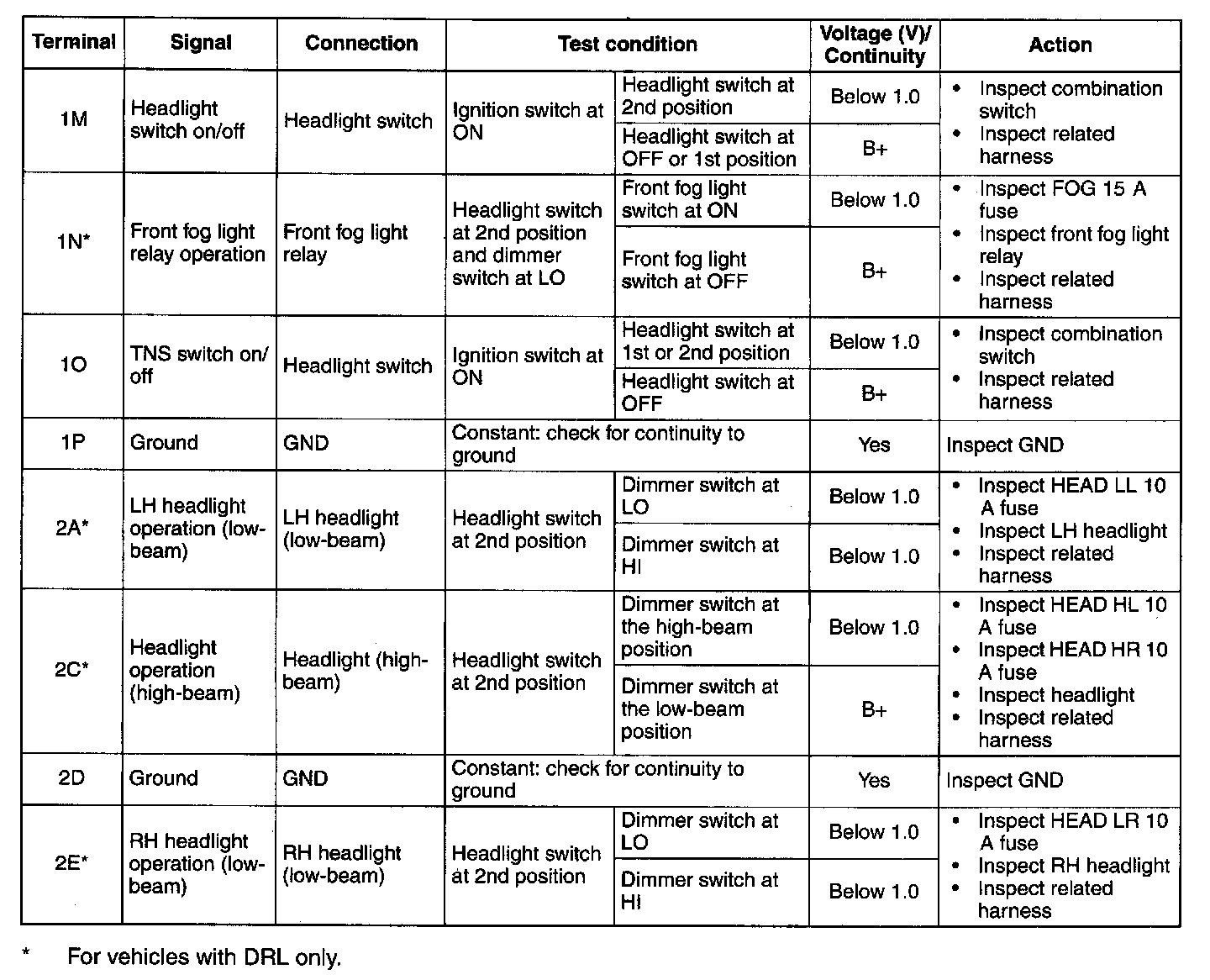

Terminal Voltage List (Reference):

Terminal Voltage List (Reference)
