Oscilloscope Patterns and Waveforms

Inspection Using An Oscilloscope (Reference) (California emission regulation applicable ATX model)

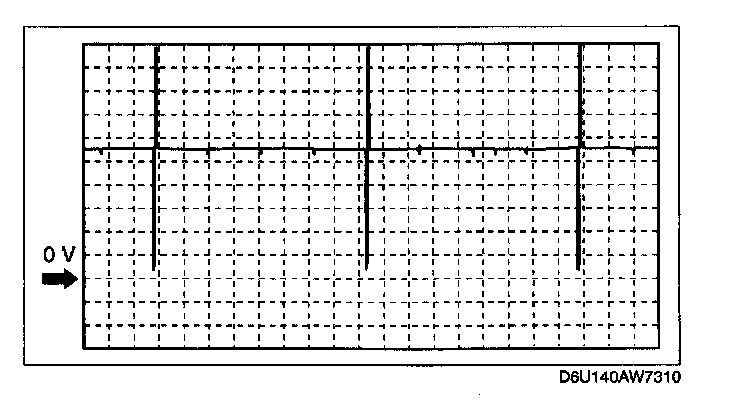

Ignition coil signal

- PCM terminals
- No.1 cylinder: 102 (+) - 26 (-)
- No.2 cylinder: 78 (+) - 26 (-)
- No.3 cylinder: 103 (+) - 26 (-)
- No.4 cylinder: 104 (+) - 26 (-)

- Oscilloscope setting: 2.5V/DIV (Y), 20 ms/DIV (X), DC range
- Vehicle condition: Idle after warm up (no load)
