Technical Data

TRANSMISSION/TRANSAXLE TECHNICAL DATA

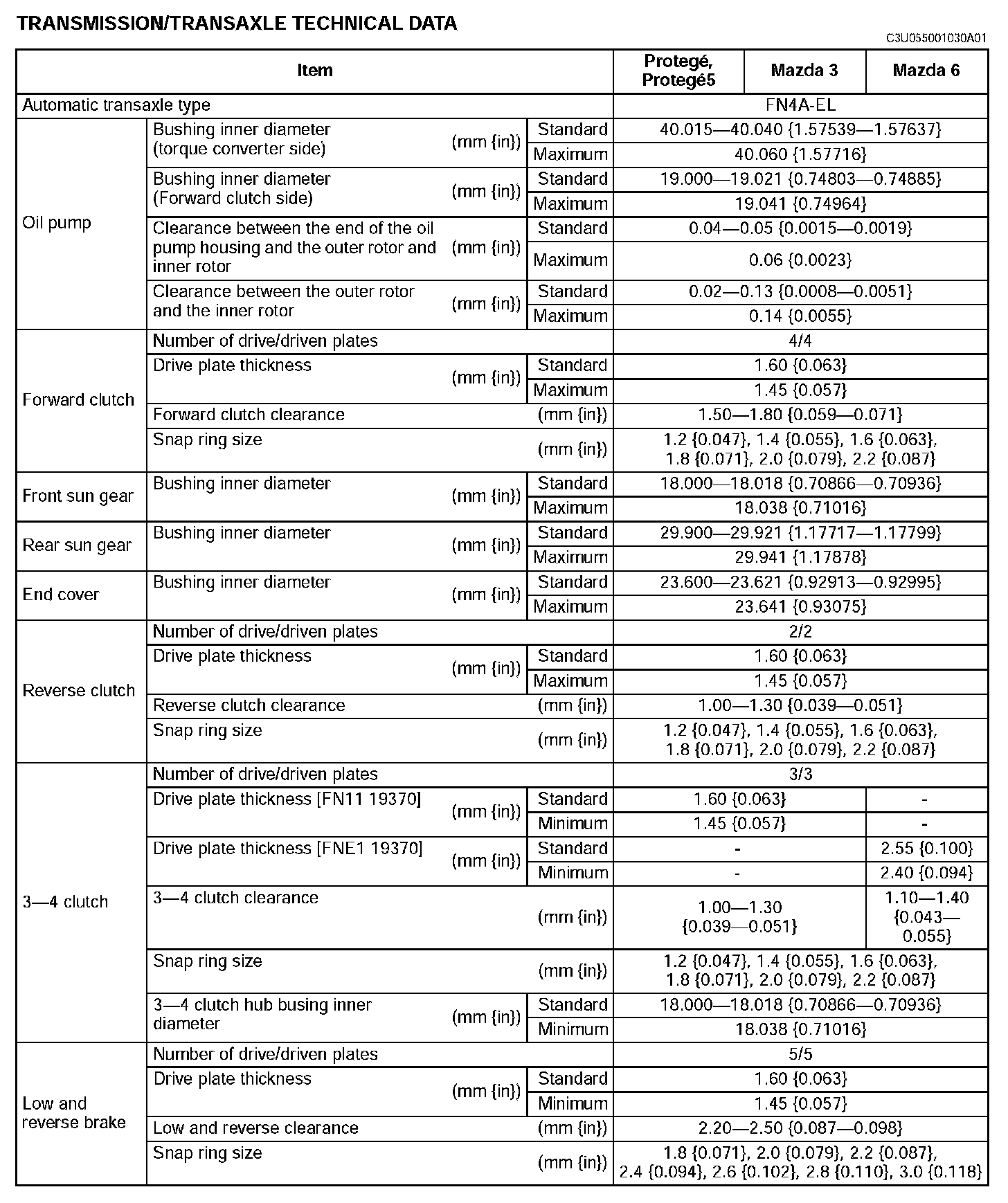

Transmission/Transaxle Technical Data (Part 1):

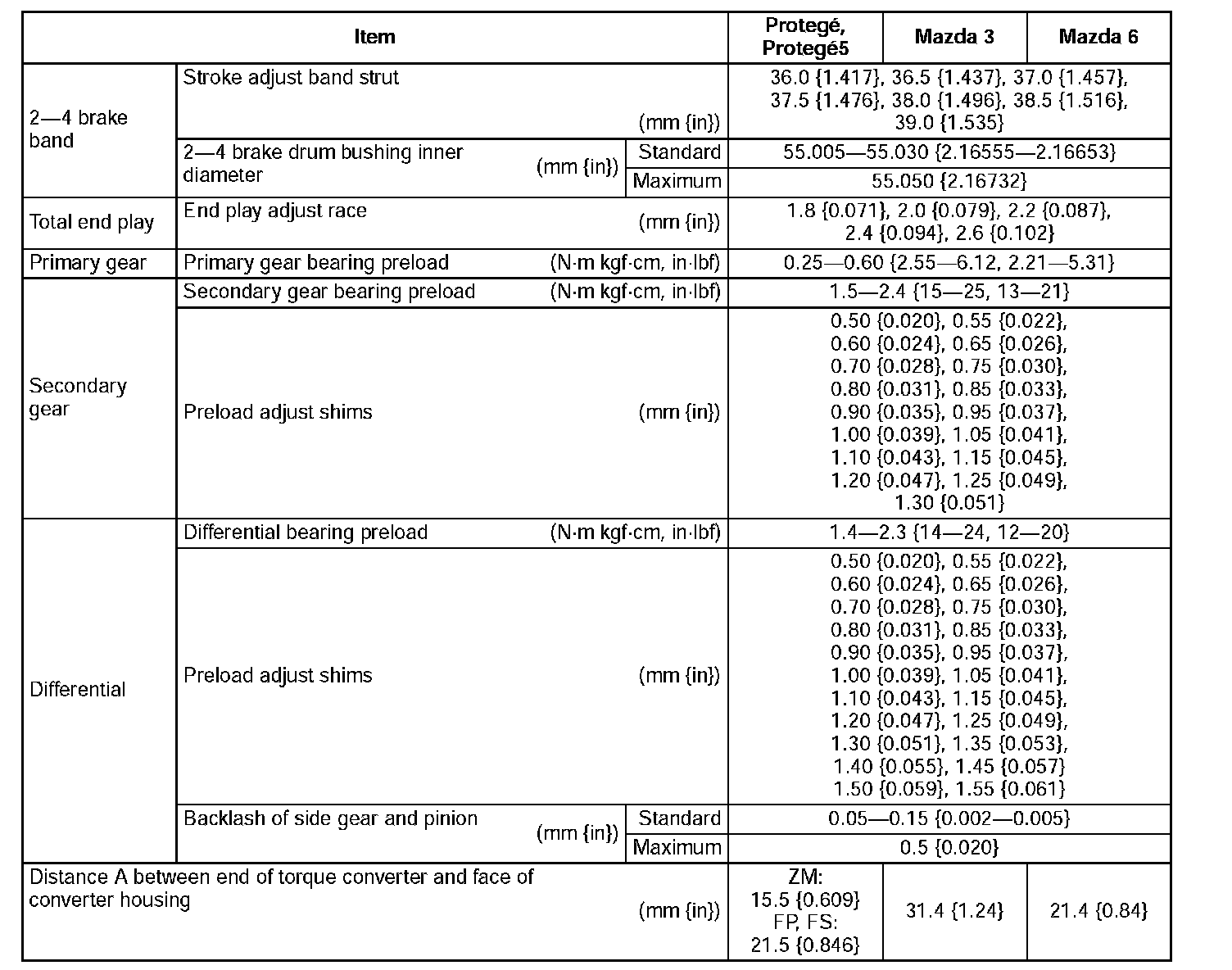

Transmission/Transaxle Technical Data (Part 2):

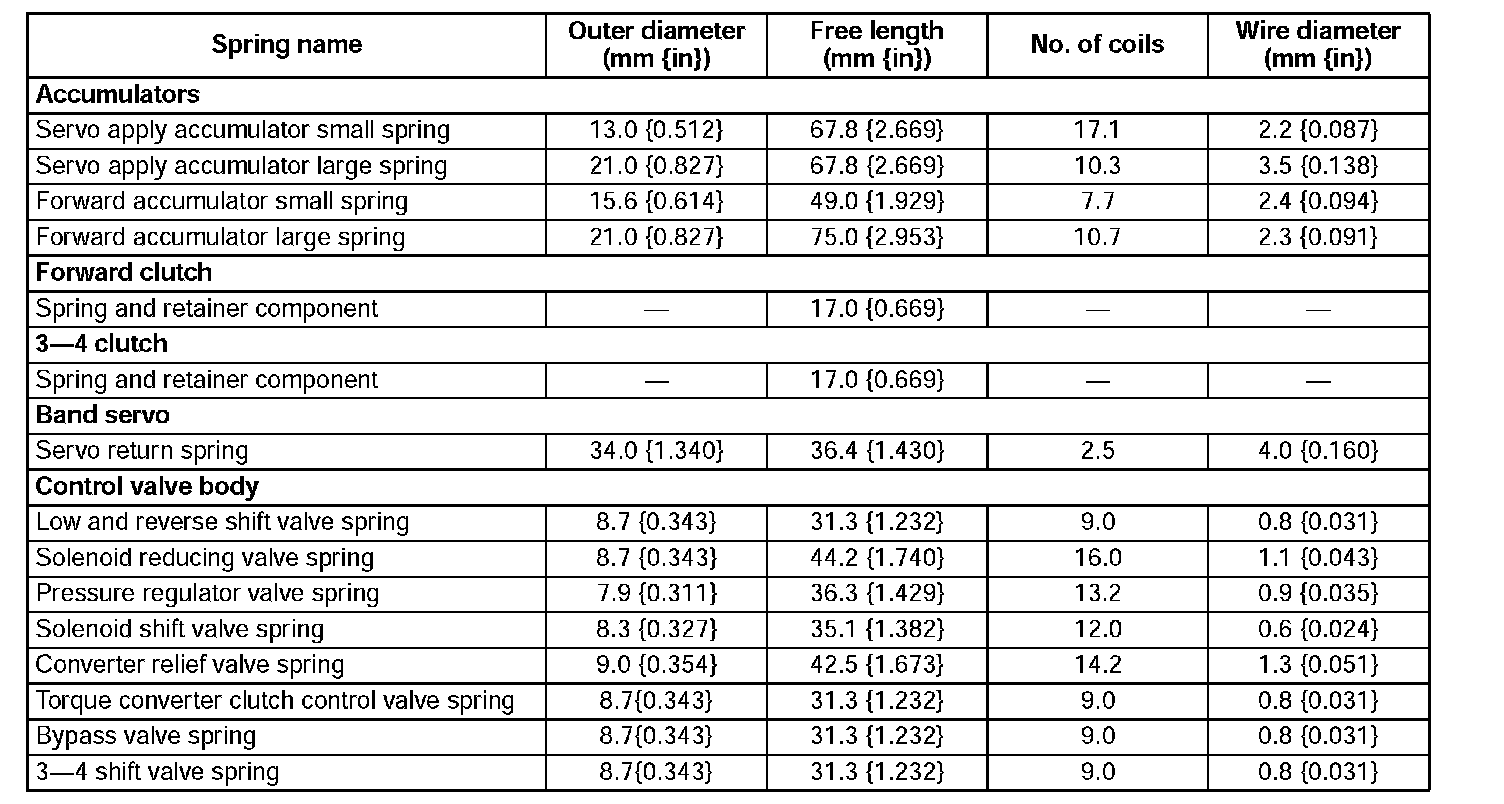

Transmission/Transaxle Technical Data (Part 3):

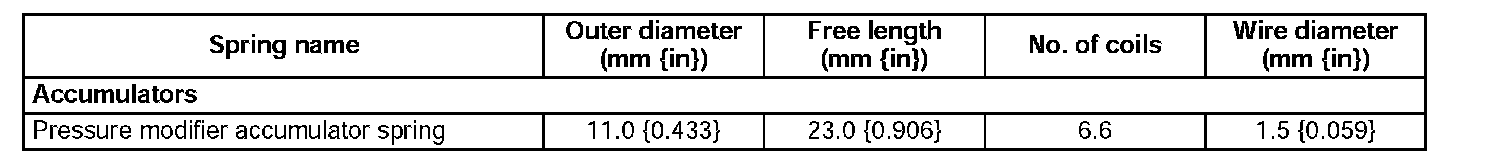

Transmission/Transaxle Technical Data (Part 4):
