ECT Sensor Resistance Inspection: Specification

RESISTANCE (KILOHM) SPECIFICATION CHART

Water temperature (°C {°F}) Resistance (kilohm)
20 {68} 35.48-39.20
70 {158} 5.07-5.60
80 {176} 3.65-4.02

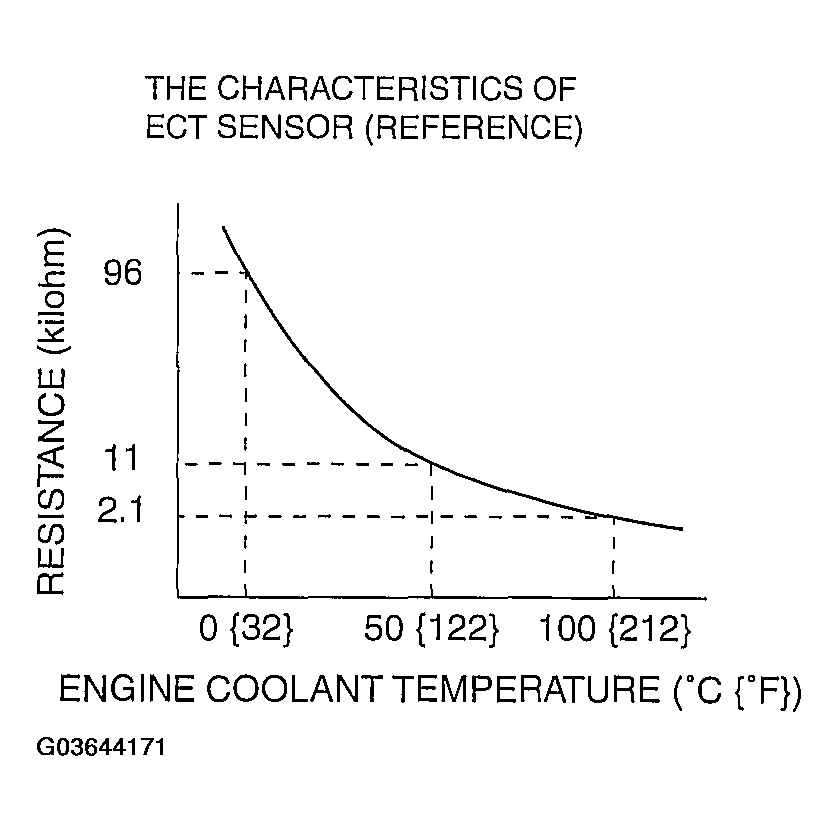

Fig 1: Identifying Resistance And Temperature Graph
G03644171Courtesy of MAZDA MOTORS CORP.
