Continuity Inspection: Notes
- Inspect the following if the power steering is inoperative:
- Power steering fluid level
- Power steering fluid leakage
- Power steering fluid pressure
- Disconnect the PSP switch connector.
- Start the engine.

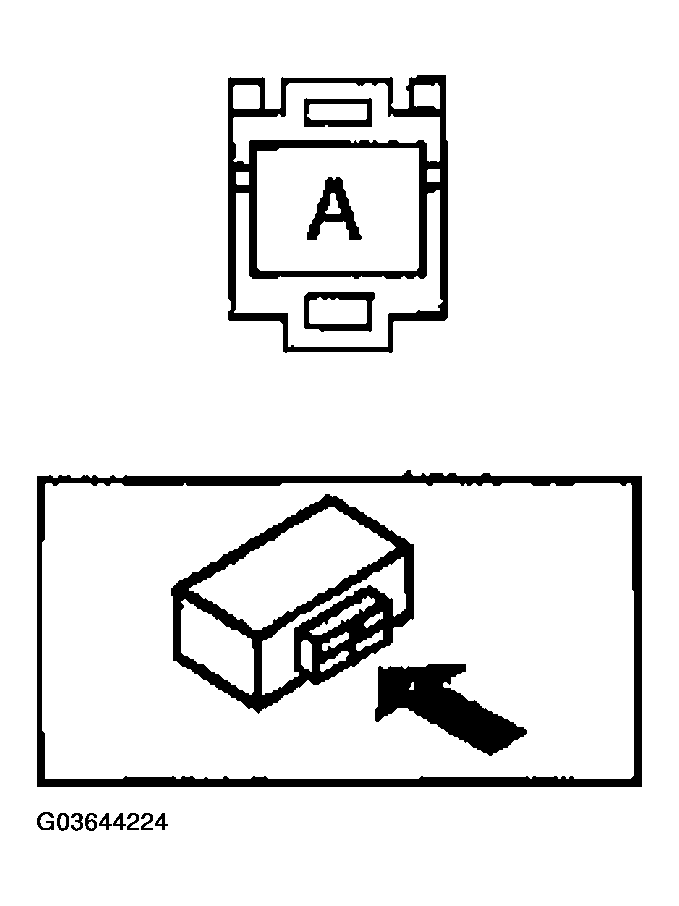

- Inspect for continuity between PSP switch terminal A and body GND using an ohmmeter.
- If the PSP switch is okay, but the PID value is out of specification, perform the "Circuit Open/Short Inspection".
- If not as specified, replace the PSP switch. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [AJ]
.)
Courtesy of MAZDA MOTORS CORP.
