Accelerator Pedal Position (App) Sensor Inspection: Notes

1. Connect the WDS or equivalent to the DLC-2.
2. Turn the ignition switch to ON position.
3. Select APP1 or APP2 PID (percentage) on the WDS or equivalent.
4. Verify that the APP1 or APP2 PID (percentage) changes smoothly while accelerator pedal is gradually depressed.
   • If as verified, go to next step.
   • If not as verified, perform the "Circuit Open/Short Inspection".

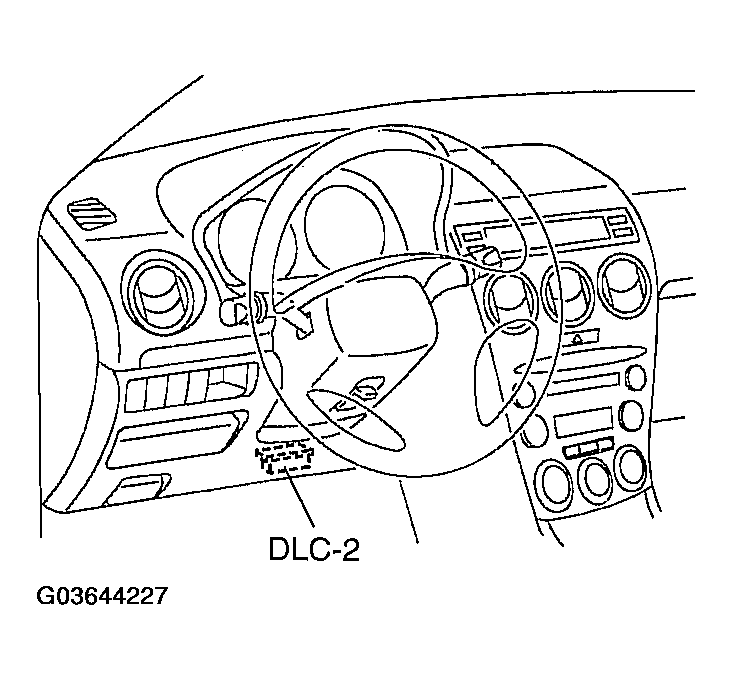

     Fig 1: Locating DLC-2 Connector

     Courtesy of MAZDA MOTORS CORP.
5. Verify that the APP1 or APP2 PID (percentage) is as indicated in the table below according to the condition of the accelerator pedal.
   • If not verified, perform the "Circuit Open/Short Inspection".
     • If there is no open or short circuit, replace the APP sensor. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)

Specification
