Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (AJ)
>>
Control System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Control System Diagram

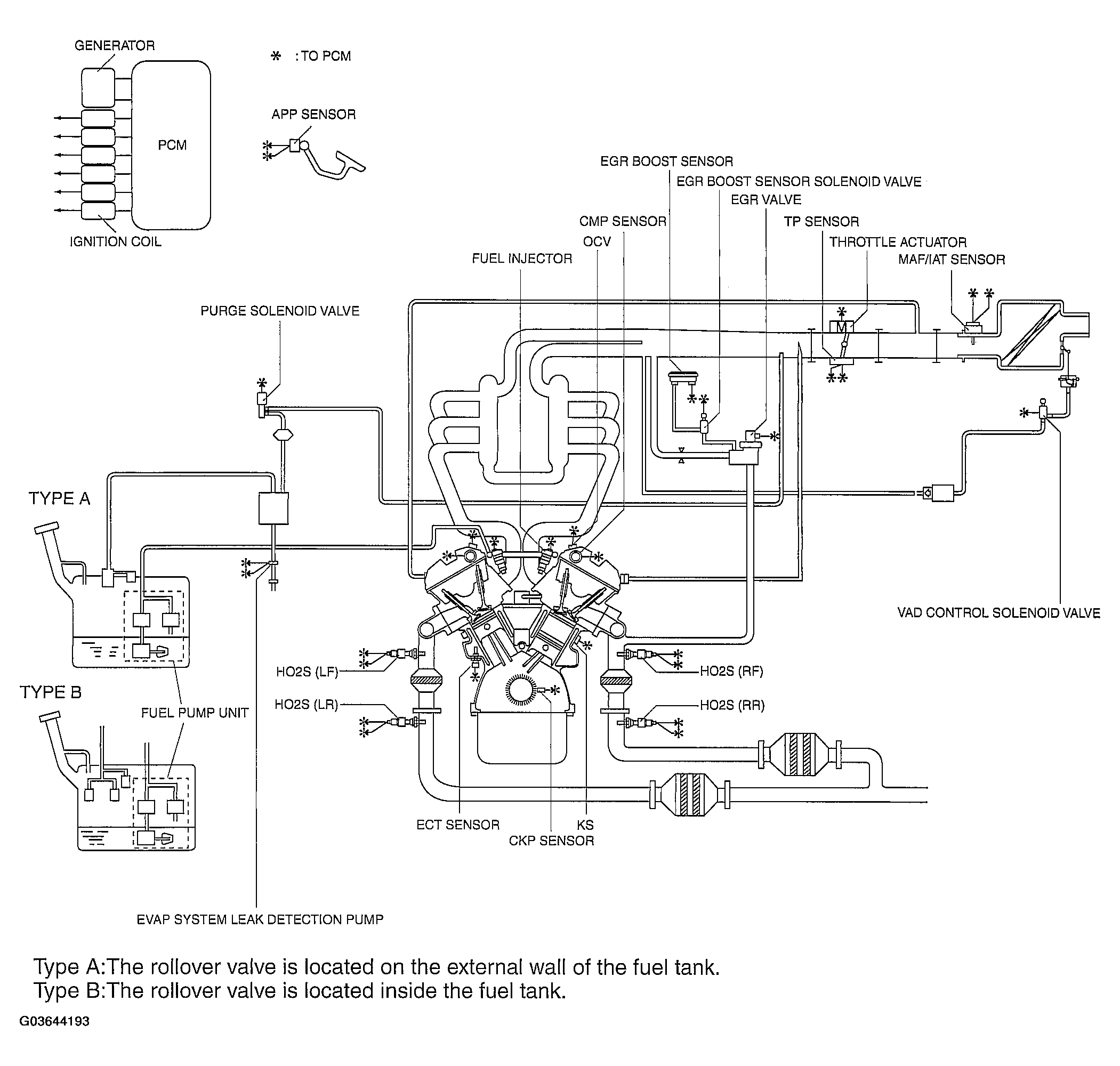

Fig 1: Identifying Control System Diagram [AJ]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
