Pcm Inspection: Notes

Connect the WDS or equivalent to the DLC-2.
Turn the ignition switch to ON position.
Measure the PID value.
- If PID value is not within the specification, follow the instructions in Action column.

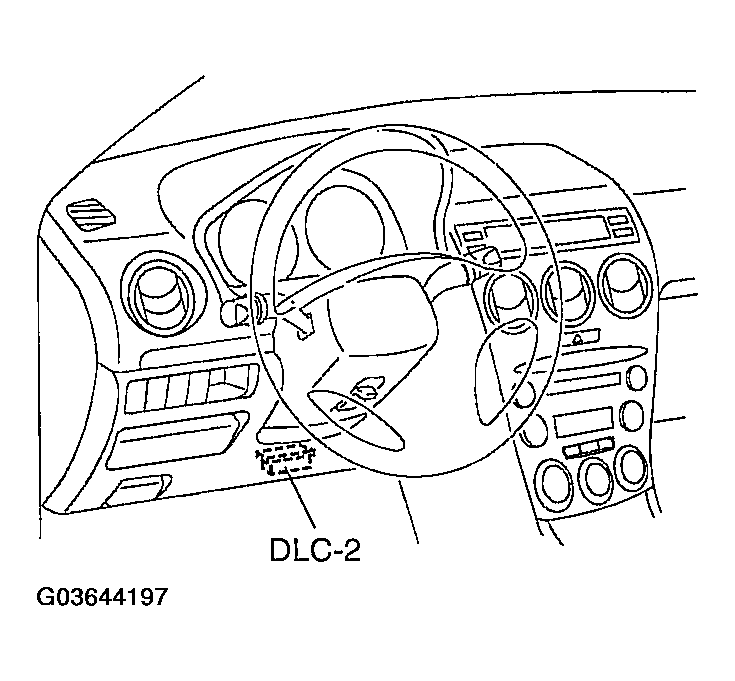

  Fig 1: Locating DLC-2 Connector
  Courtesy of MAZDA MOTORS CORP.
