After Repair Procedure

  1. Connect the WDS or equivalent to the DLC-2.
  2. Cycle the ignition switch from OFF to ON.
  3. Record DTC if retrieved.
  4. Erase all diagnostic data using the WDS or equivalent.

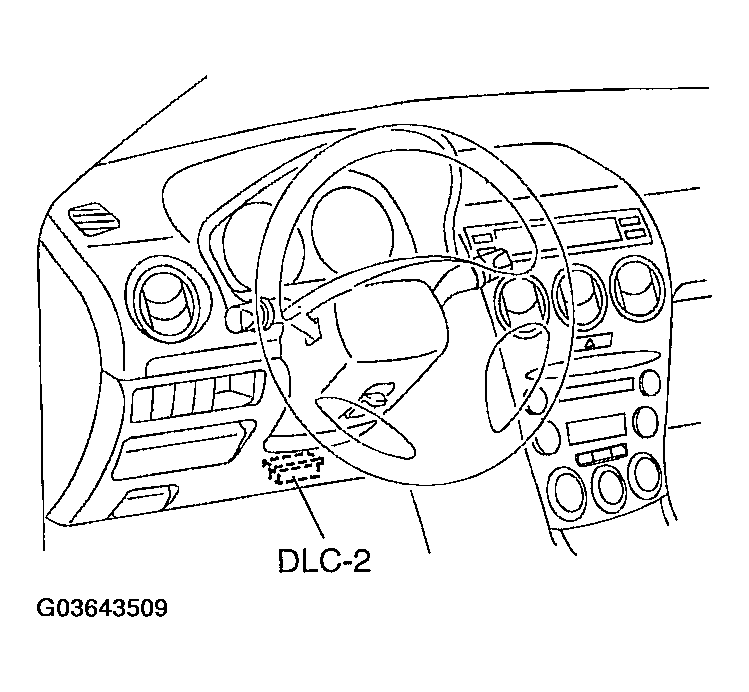

    Fig 1: Identifying DLC-2 (After Repair Procedure)
    G03643509Courtesy of MAZDA MOTORS CORP.
