Inside Door Handle Cable Removal

  1. Remove the inside door handle cable watershield.
  2. Remove the cable conduit from the door lock.
  3. Disconnect cable from the door lock.

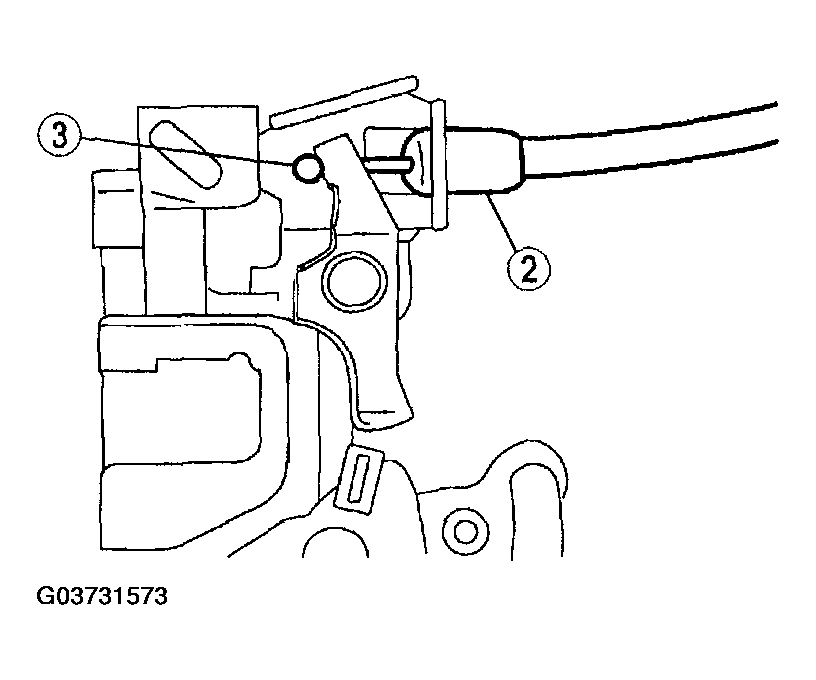

    Fig 1: Removing Inside Door Handle Cable
    G03731573Courtesy of MAZDA MOTORS CORP.
