Hood Switch Removal/Installation

Remove in the order shown in Fig 1.
1. Electrical connector
2. Hood switch mounting screw
3. Hood switch

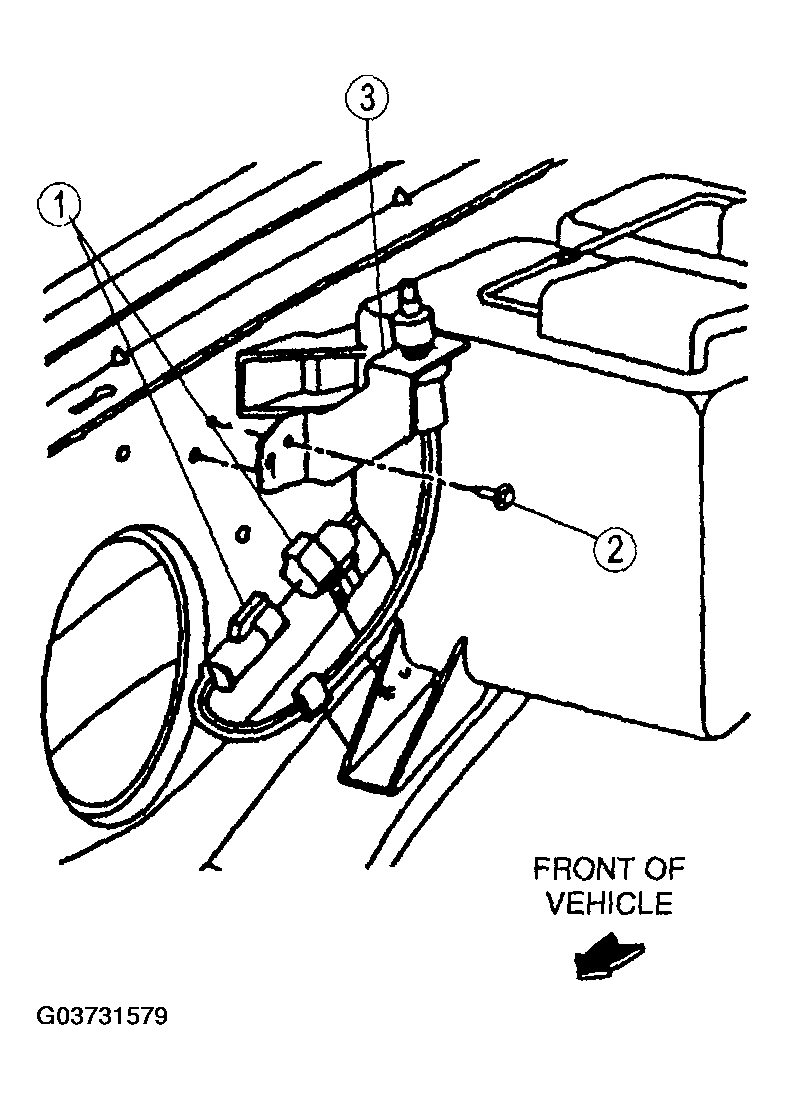

  Fig 1: Removing Hood Switch
  Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
NOTE:
- Make sure hood switch bracket is firmly seated when driving mounting screw to retain switch.
