Charging System Pinpoint Test 5: Charging System Warning Indicator Is Off With The Ignition Switch In The Run Position And The Engine Off

PINPOINT TEST 5 - CHARGING SYSTEM WARNING INDICATOR IS OFF WITH IGNITION SWITCH IN RUN POSITION AND ENGINE OFF

PINPOINT TEST 5 THE CHARGING SYSTEM WARNING INDICATOR IS OFF WITH THE IGNITION SWITCH IN THE RUN POSITION AND THE ENGINE OFF
STEP INSPECTION ACTION
1 CHECK THE CHARGING SYSTEM WARNING INDICATOR
  • Key in OFF position.
  • Disconnect: Generator 0117-01.
  • With the engine off, connect a fused (15A) jumper wire between the generator 0117-01 pin 1, circuit LG/R, harness side and ground.
  • Key in ON position.
  • Is the charging system warning indicator illuminated?
 Yes If 3.0L or 4.0L engine, Install a new voltage regulator. See VOLTAGE REGULATOR REMOVAL/INSTALLATION .
Test the system for normal operation.
If 2.3L engine, Install a new generator.
See GENERATOR REMOVAL/INSTALLATION - 2.3L . Test the system for normal operation.
No See INSTRUMENT CLUSTER DIAGNOSIS to diagnose the instrument cluster.

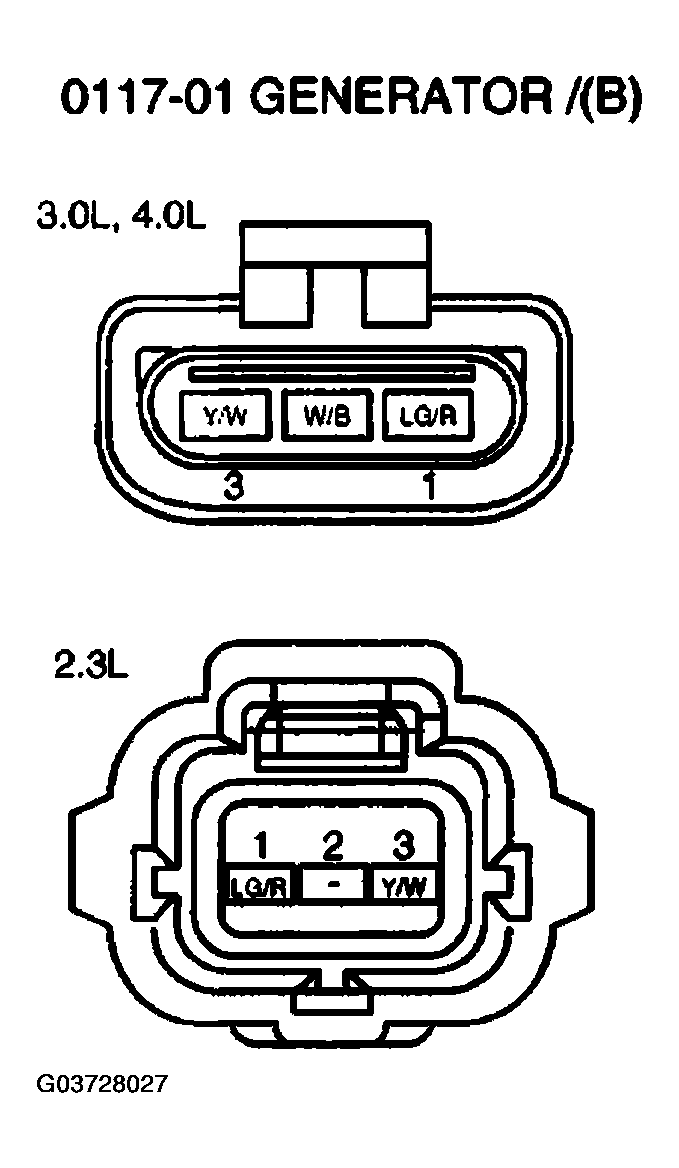

G03728027Courtesy of MAZDA MOTORS CORP.
