Removal and Installation

Remove the camshaft position (CMP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.

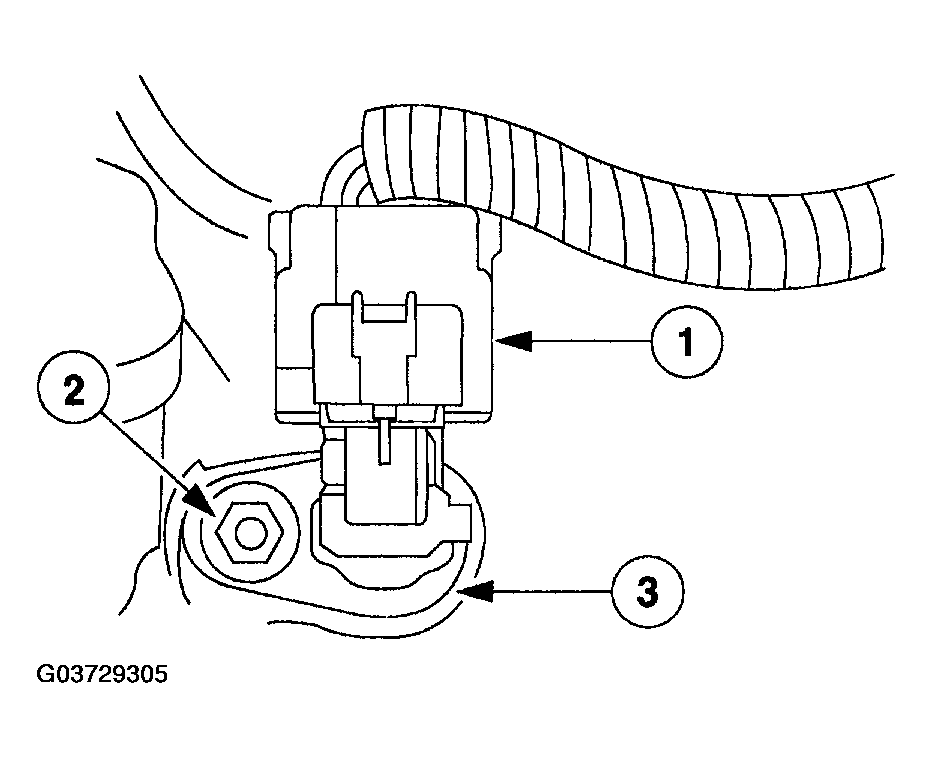

Fig 1: Removing CMP Sensor
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.

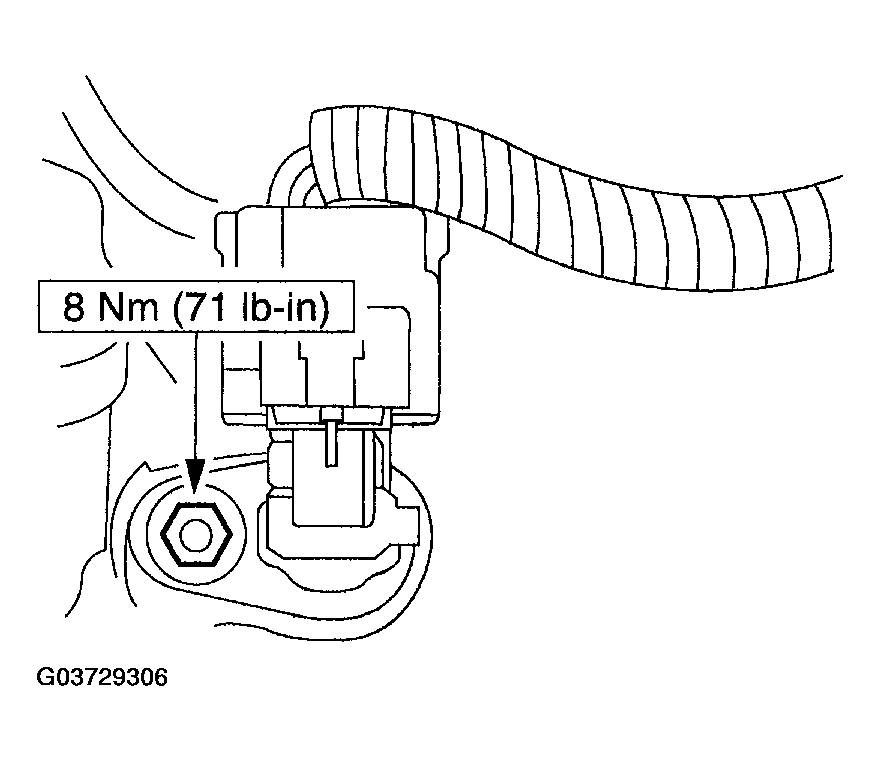

Fig 2: Installing CMP Sensor - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
