Clutch Pedal Position (CPP) Switch Removal/Installation

  1. Disconnect negative battery cable.
  2. Disconnect clutch pedal position (CPP) switch electrical connector.

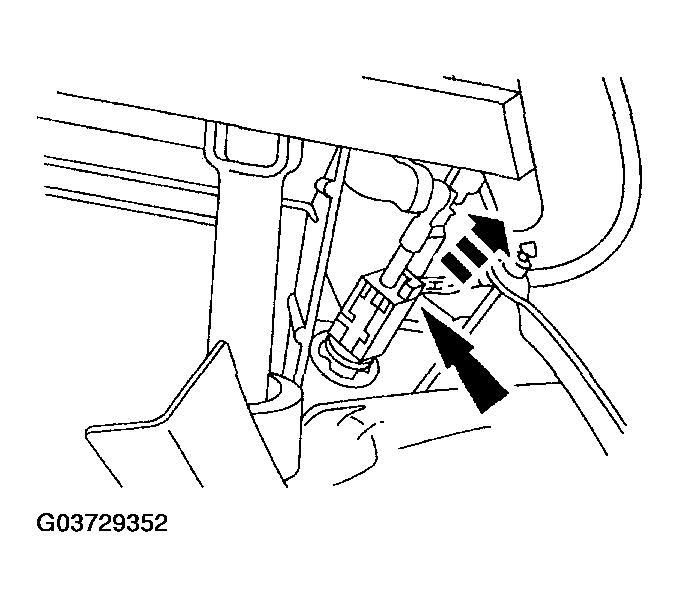

    Fig 1: Disconnecting Clutch Pedal Position (CPP) Switch Electrical Connector
    G03729352Courtesy of MAZDA MOTORS CORP.
  3. Spread the CPP switch apart and remove from the pedal rod.

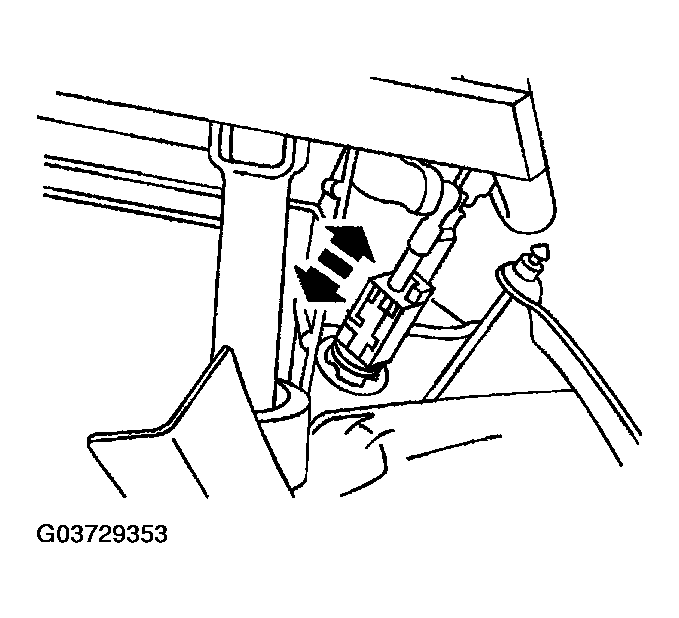

    Fig 2: Spreading CPP Switch Apart And Removing From Pedal Rod
    G03729353Courtesy of MAZDA MOTORS CORP.
  4. Install in reverse order of removal.
