Fuel Tank Support Straps Removal/Installation
- Raise the vehicle. See
LIFTING
.

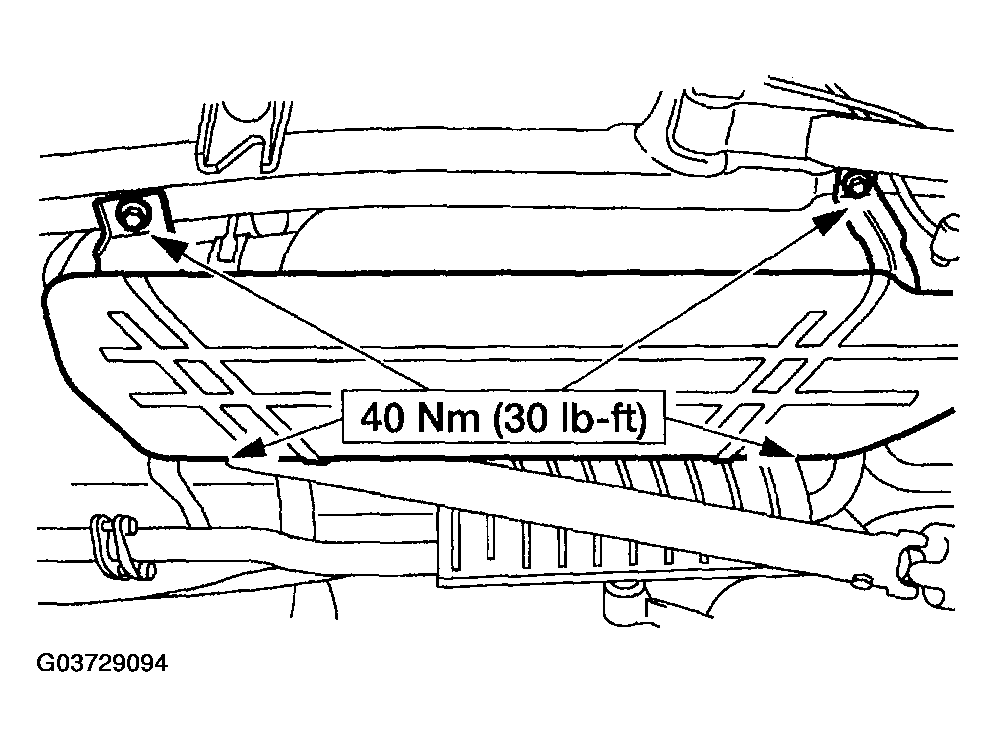

- Remove the four bolts (two each side) and remove the skid plate, if equipped.
Courtesy of MAZDA MOTORS CORP.
- Support the fuel tank.

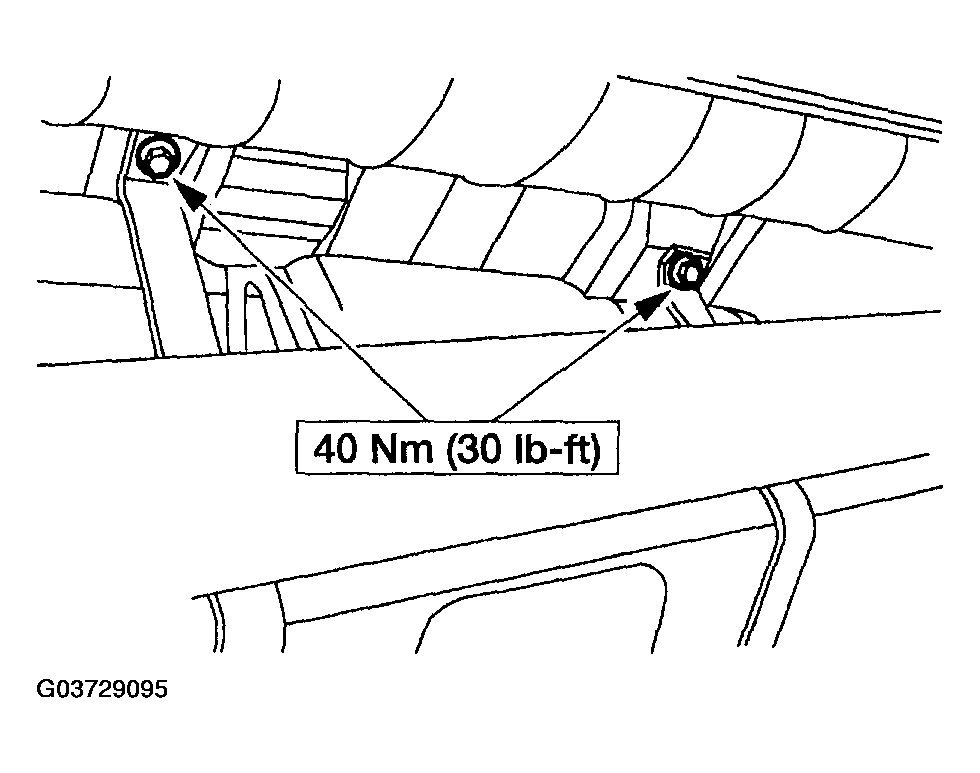

- Remove the fuel tank support straps.
- Remove the bolts.
- Remove the support straps.
Courtesy of MAZDA MOTORS CORP.
- To install, reverse the removal procedure.
