Column Cover Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the fitting parts of the upper column cover from the meter hood rubber.

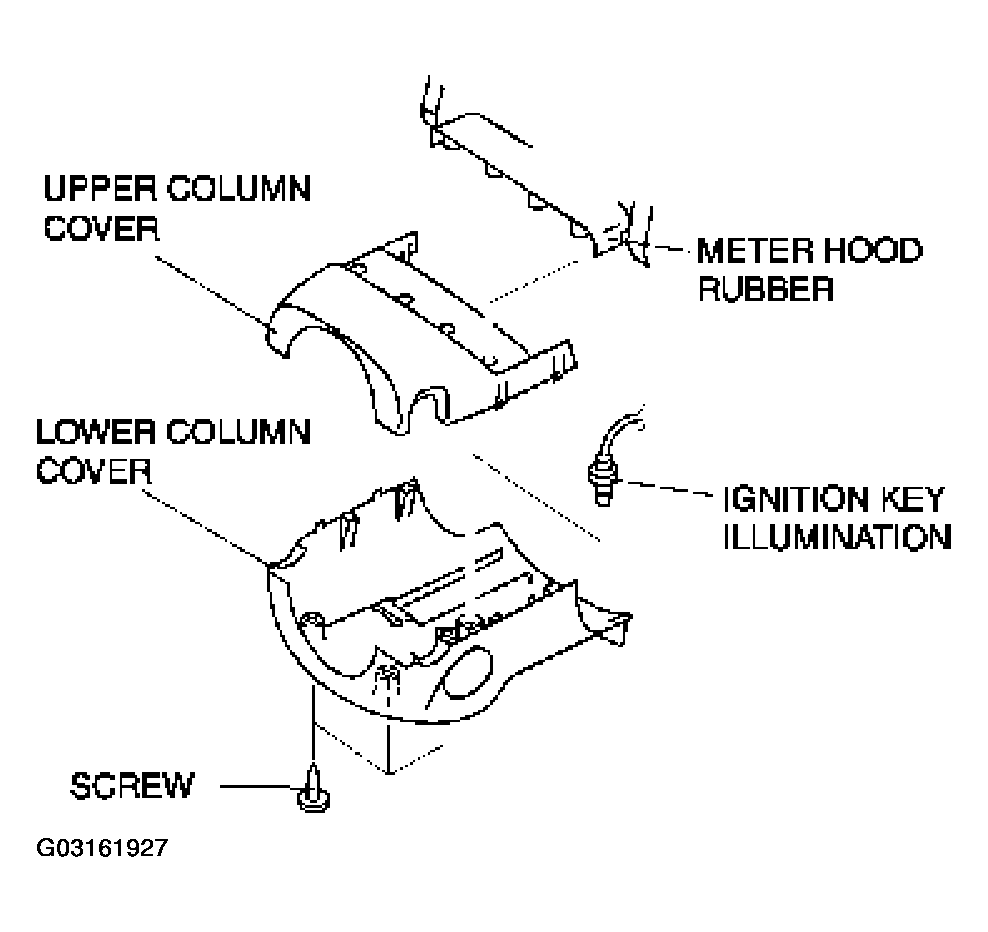

    Fig 1: Detaching Fitting Parts Of Upper Column Cover From Meter Hood Rubber
    G03161927Courtesy of MAZDA MOTORS CORP.
  2. Remove the upper column cover.
  3. Remove the ignition key illumination.
  4. Remove the screws.
  5. Remove the lower column cover.
  6. Install in the reverse order of removal.
