Electrical System: Inspection

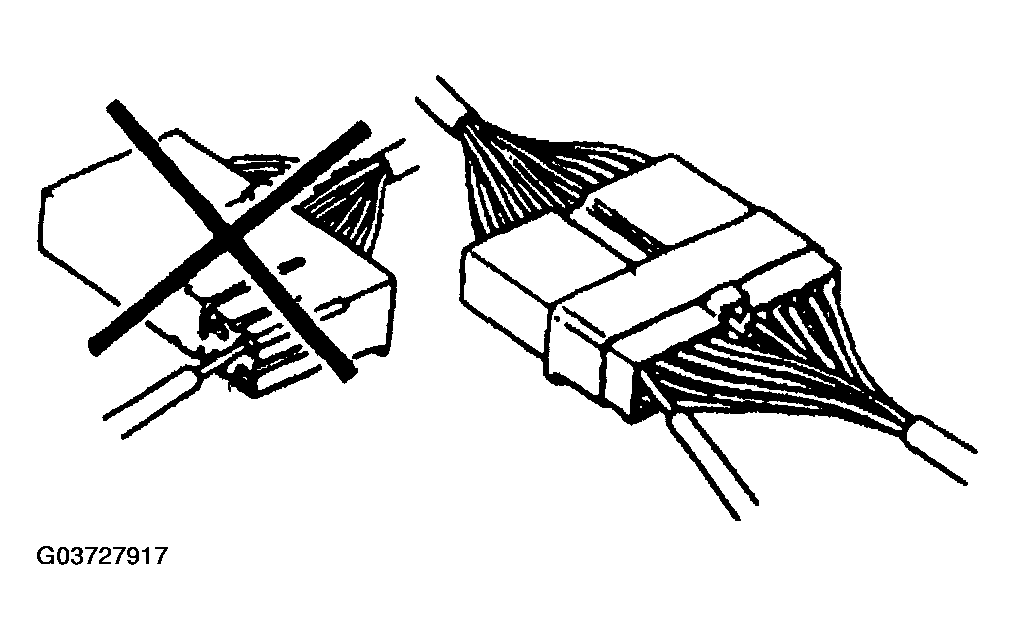

- When a tester is used for checking continuity or measuring voltage, insert the tester probe from the wiring harness side.
Courtesy of MAZDA MOTORS CORP.

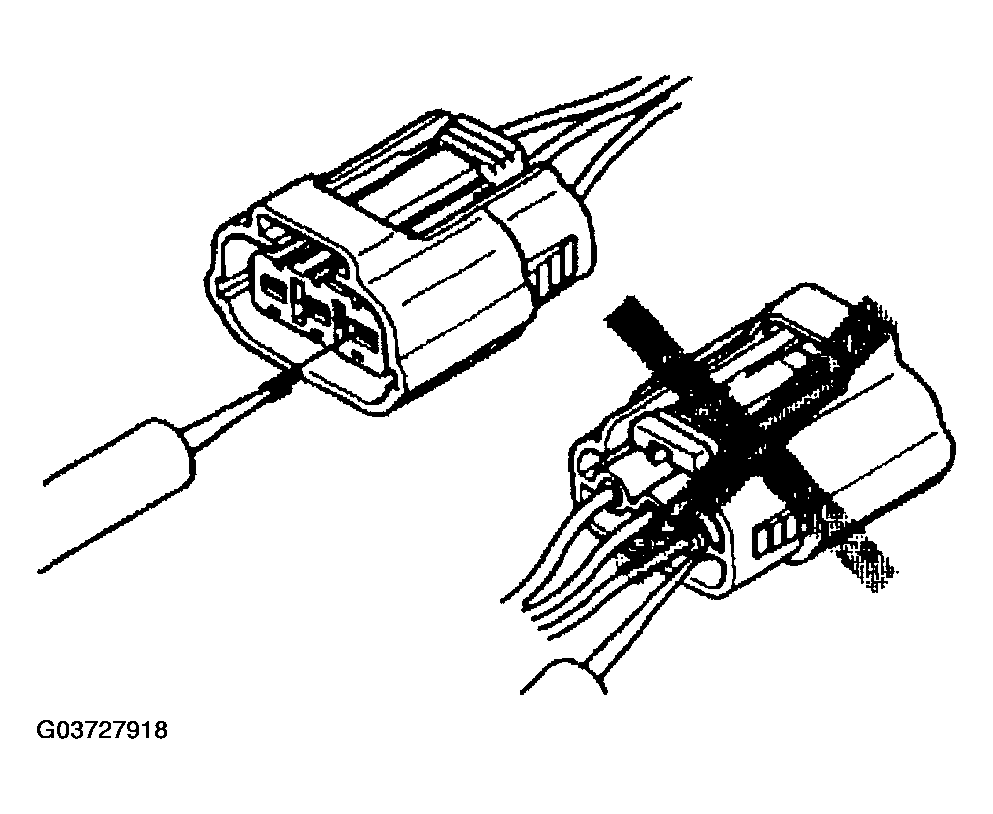

- Check the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.
CAUTION:
- To prevent damage to the terminal, wrap a thin wire around the lead before inserting into terminal.
Courtesy of MAZDA MOTORS CORP.
