PID/Data Monitor Display [Two-Step Deployment Control System]

  1. Connect the WDS or equivalent to the DLC-2 connector (16-pin).
  2. Display the data monitor items.

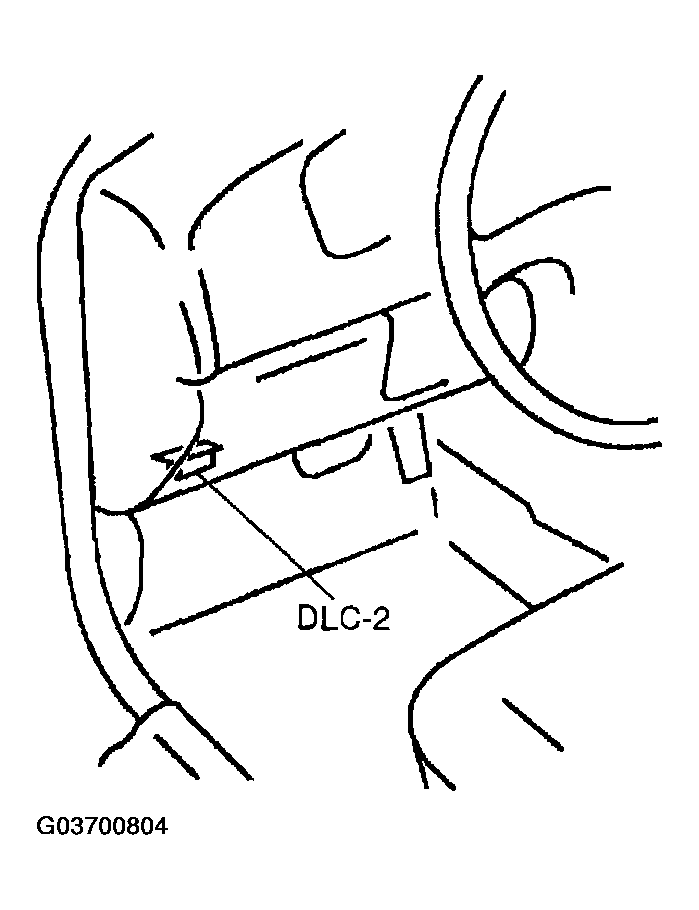

    Fig 1: Locating DLC-2
    G03700804Courtesy of MAZDA MOTORS CORP.
