Connector terminal check method
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

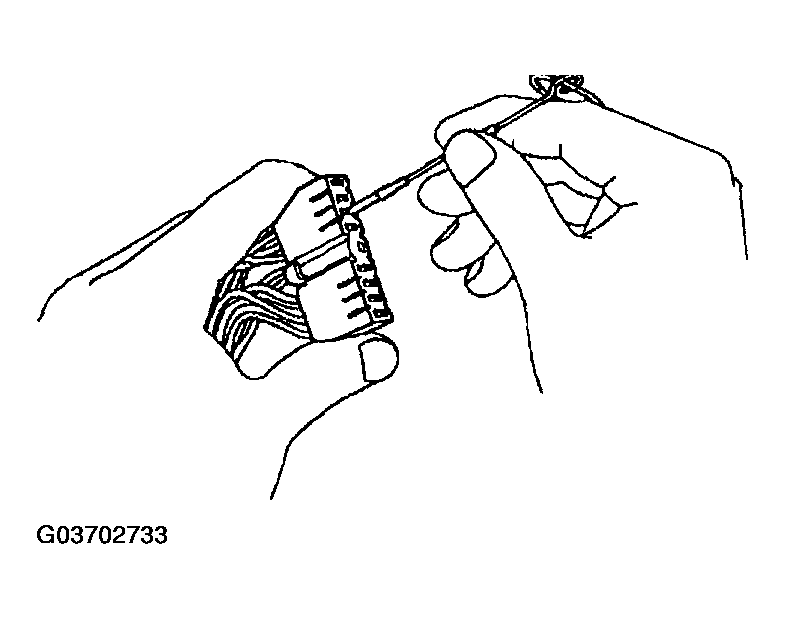

- Inspect the connection of each female terminal.
- Insert the male terminal and then fit the female terminal side to female terminal. Inspect whether the malfunction is in the female terminal.
Courtesy of MAZDA MOTORS CORP.
