Cruise Control Servo: Service and Repair

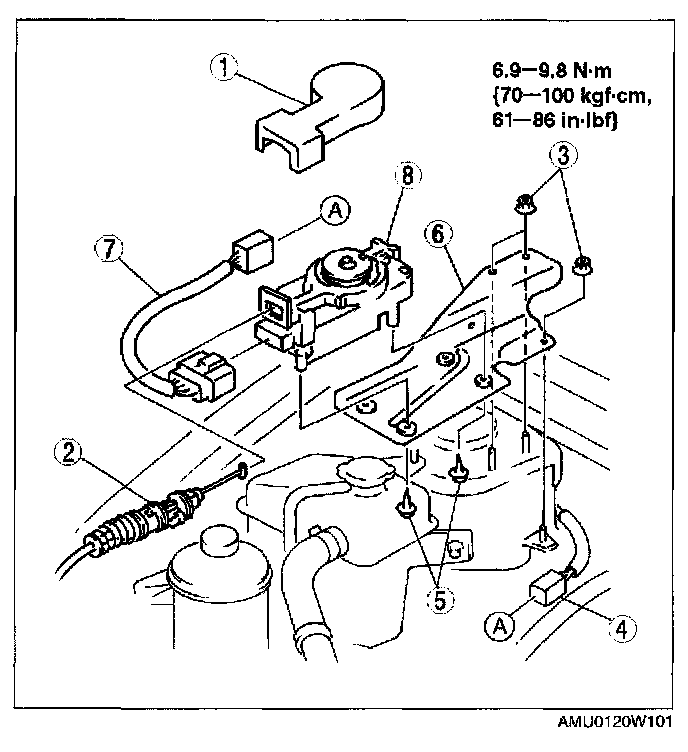

CRUISE ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the engine cover.







3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Short Cord Installation Note:




1. Install the connector of the short cord to the bracket.
