Home >> Mazda >> 2005 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated Seat Module, Driver Side

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

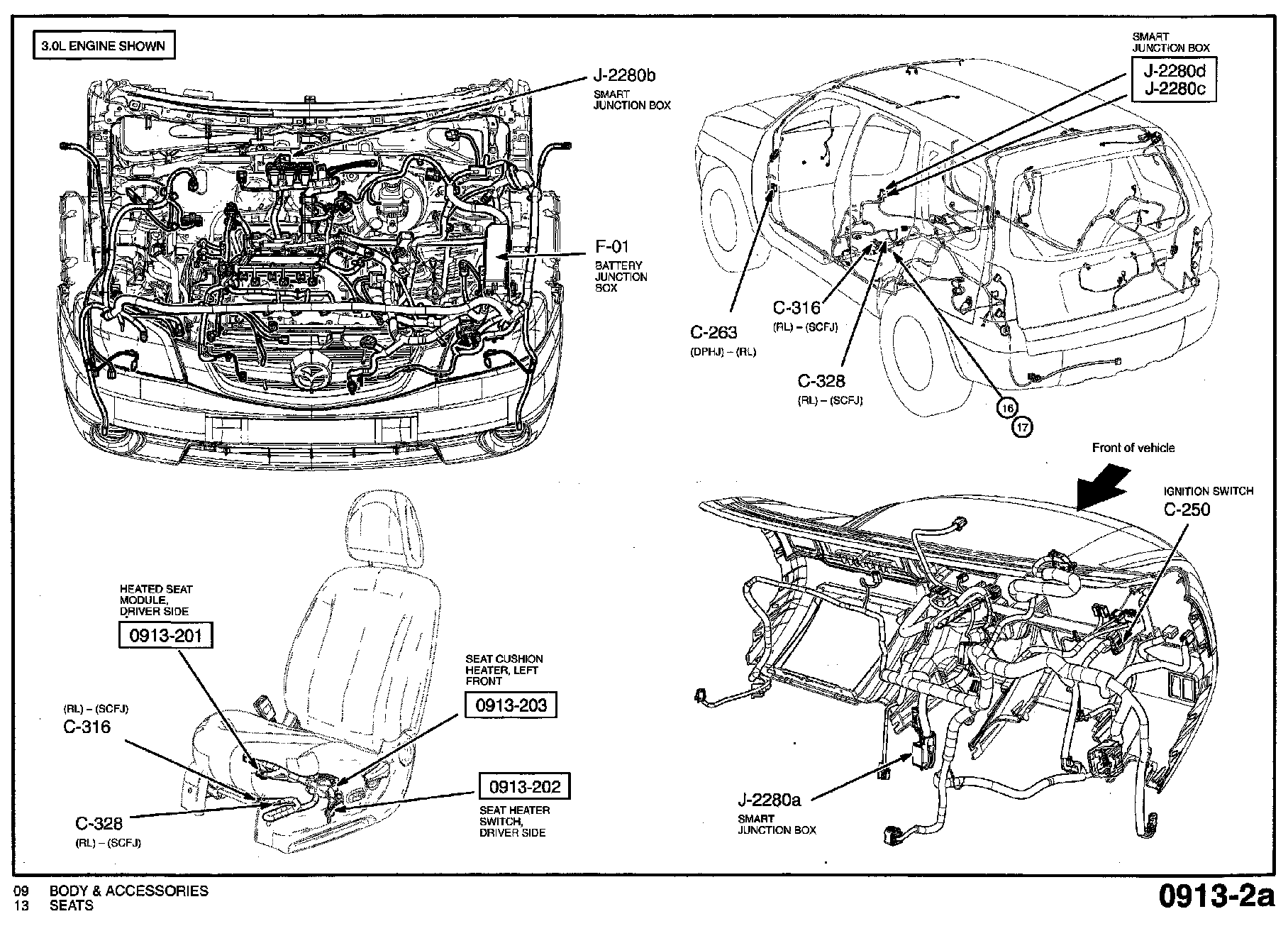

Heated Seat Module, Driver Side

Routing View 0913-2a:
