Control Assembly, HVAC

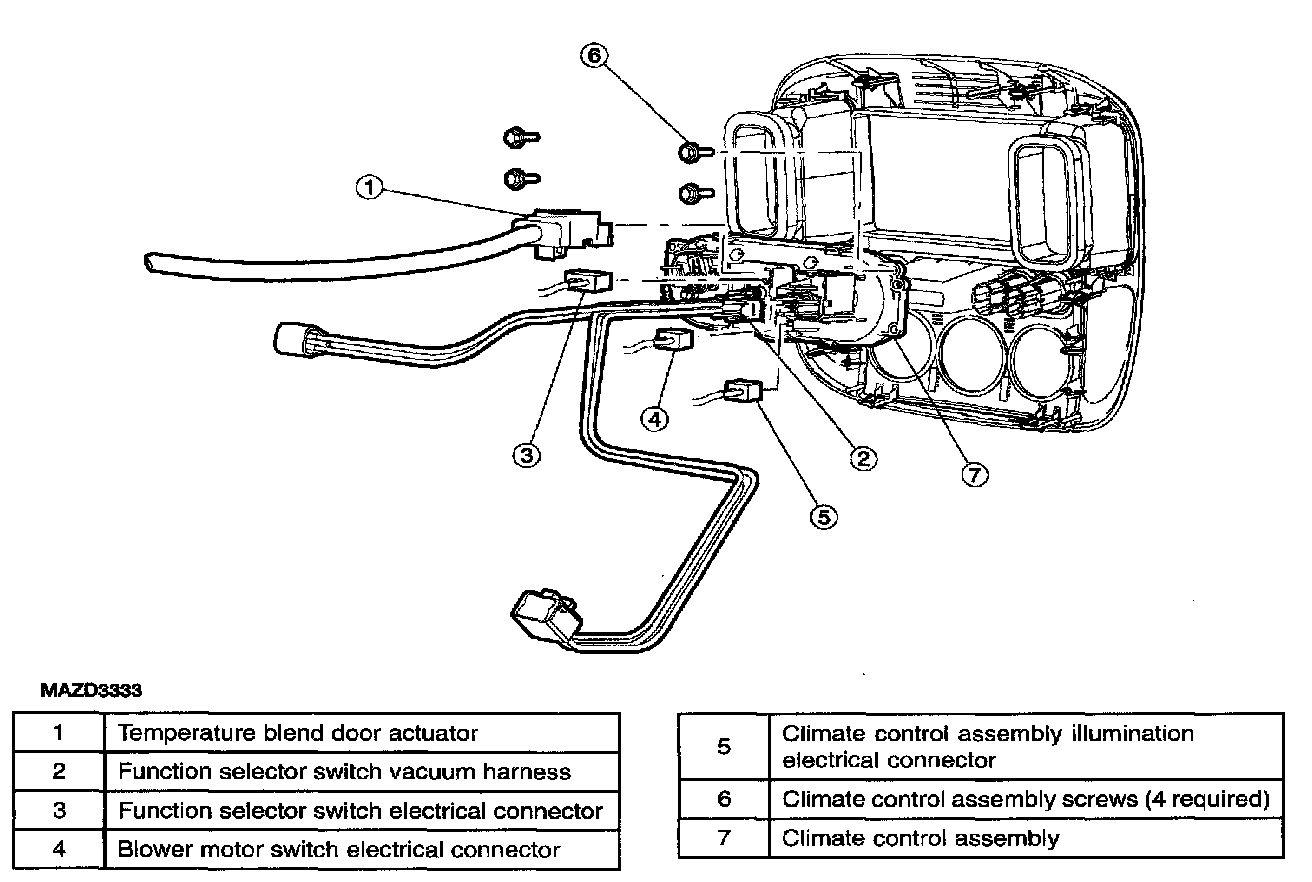

Climate Control Assembly Part 1:

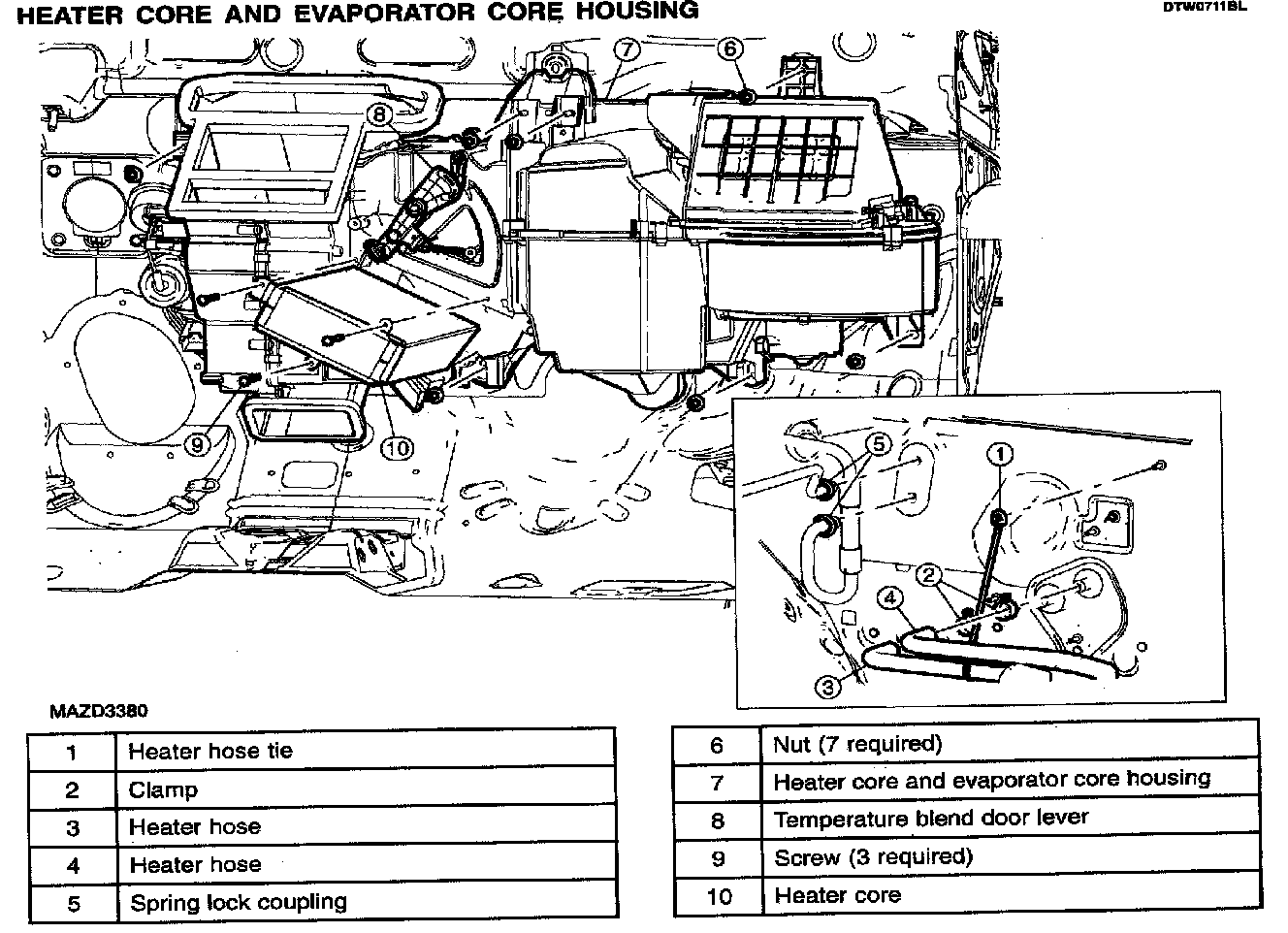

Heater Core And Evaporator Core Housing:

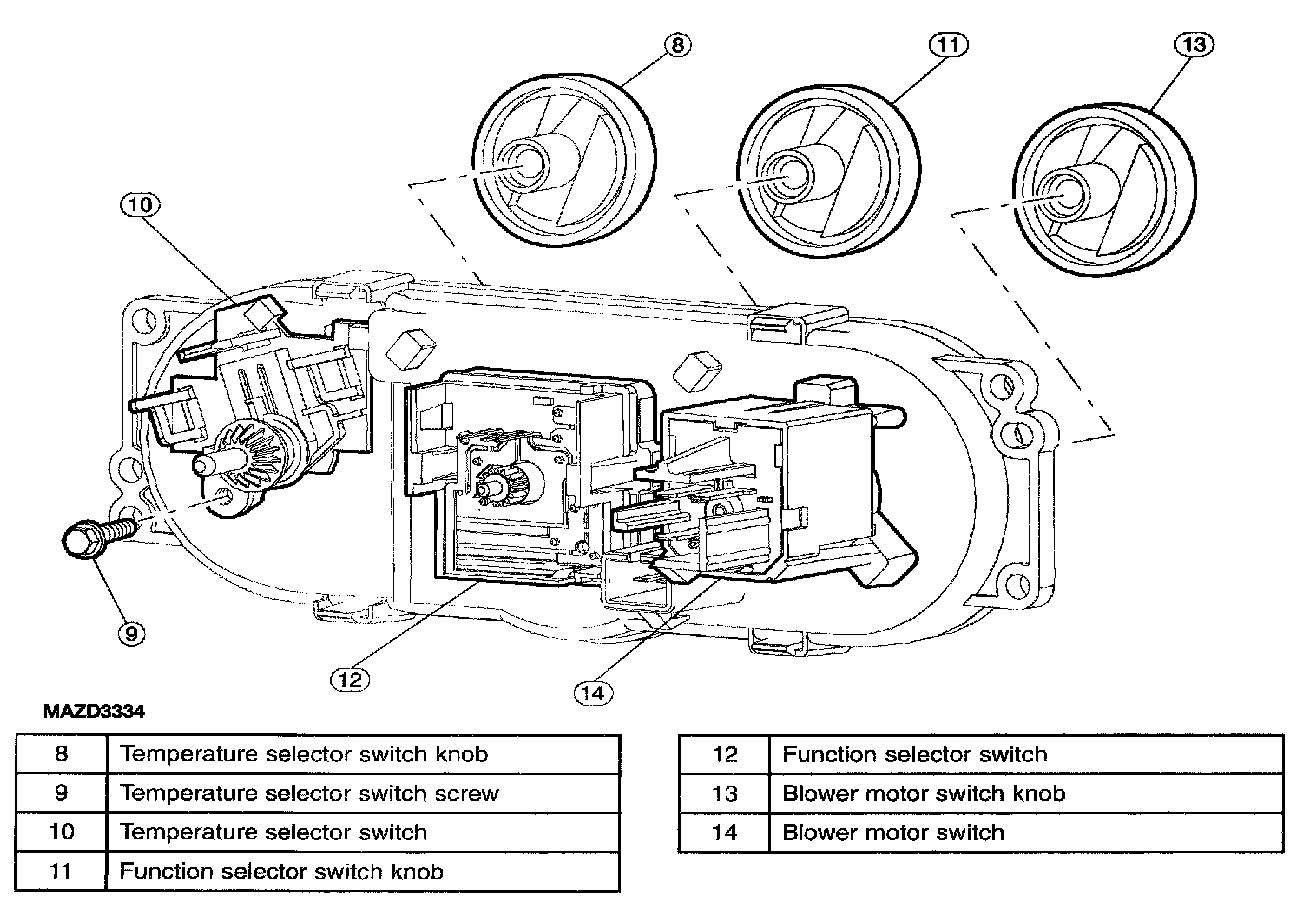

Climate Control Assembly Part 2:
