Cylinder Head Temperature (CHT) Sensor - 2.3L: Notes

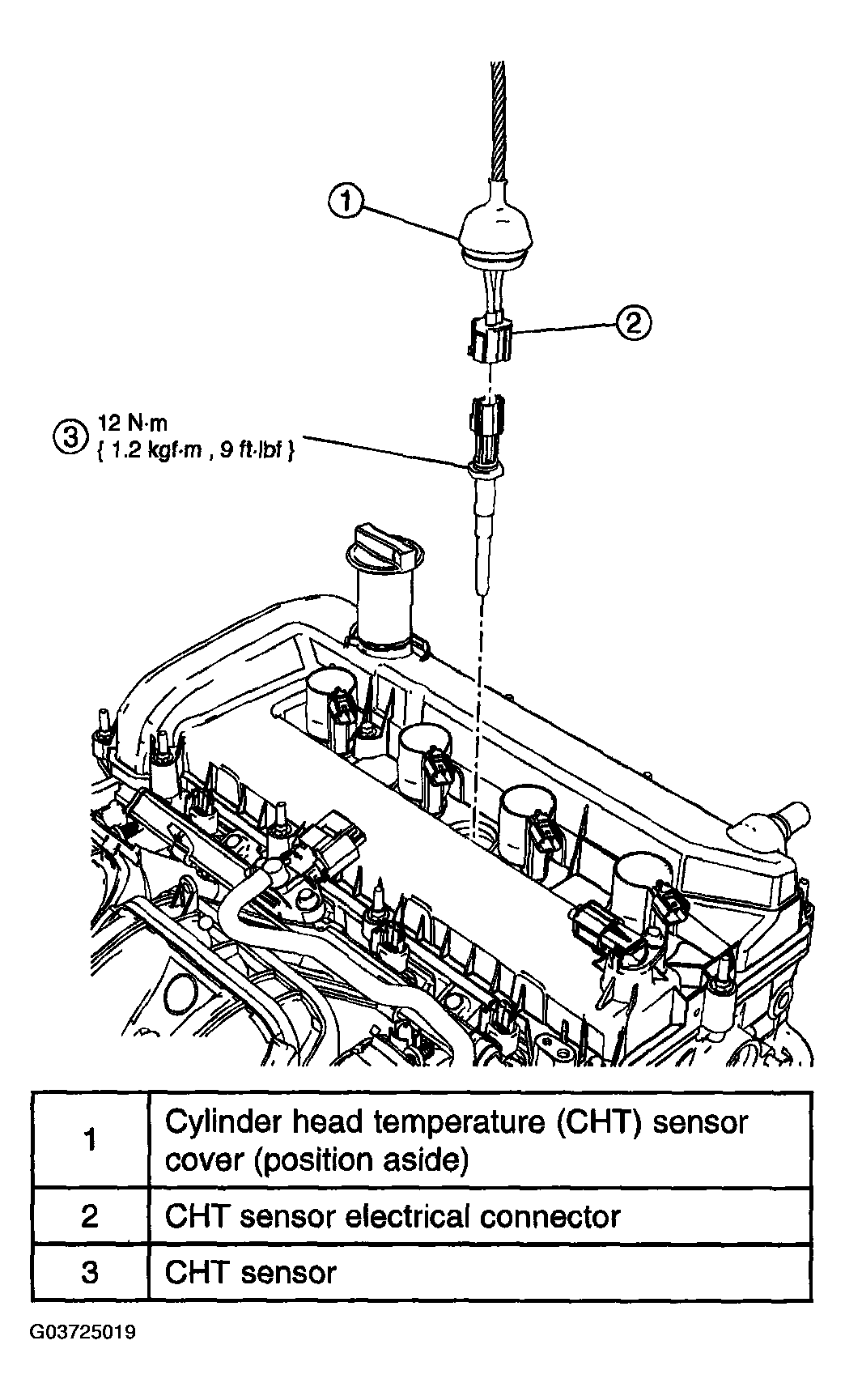

Fig 1: Removing/Installing Cylinder Head Temperature (CHT) Sensor & Torque Specifications - 2.3L
G03725019Courtesy of MAZDA MOTORS CORP.
