Ignition Switch: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

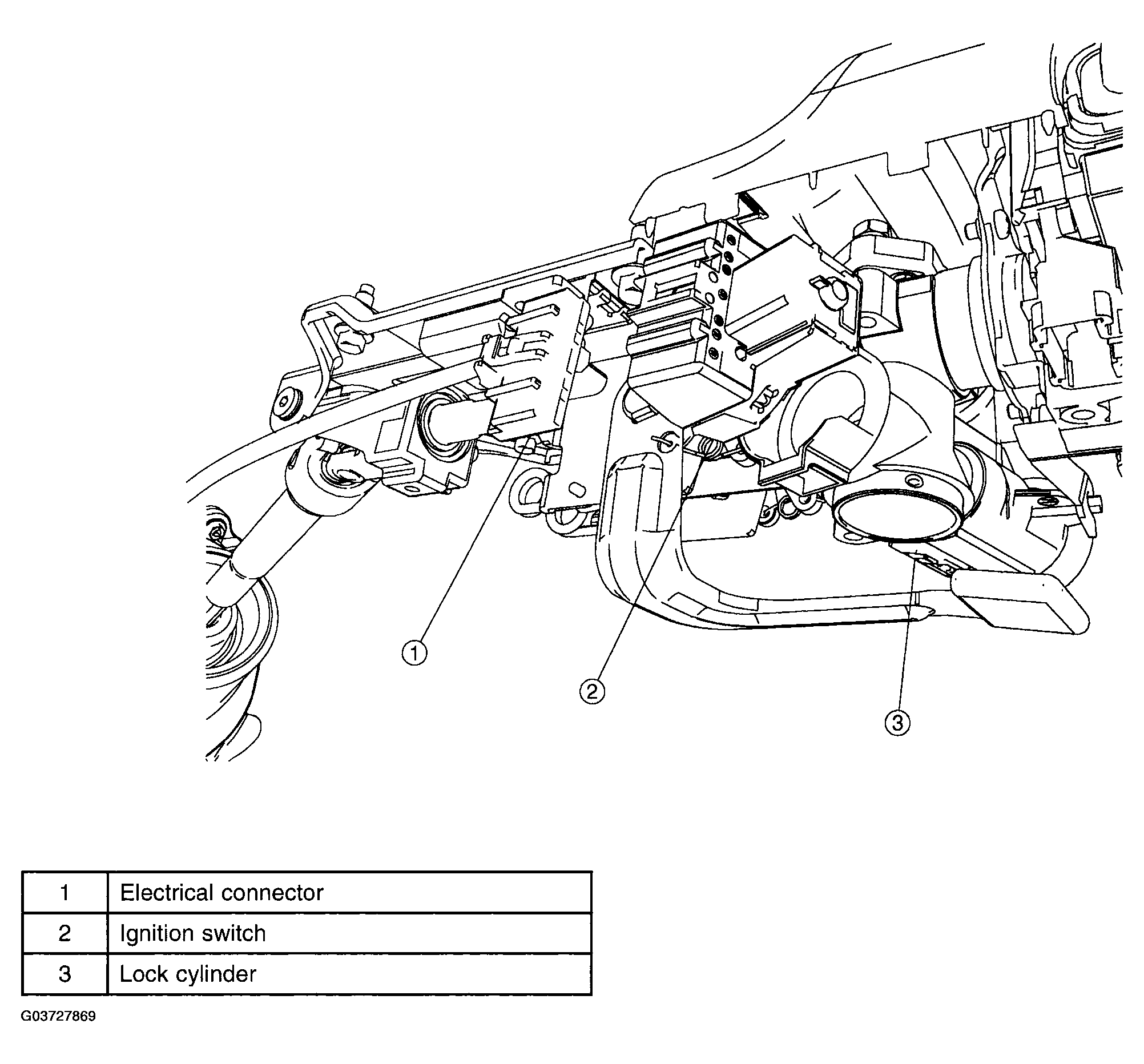

    Fig 1: Removing Ignition Switch
    G03727869Courtesy of MAZDA MOTORS CORP.
IGNITION SWITCH

1 Electrical connector
2 Ignition switch
3 Lock cylinder
