Exterior Mirror: Notes

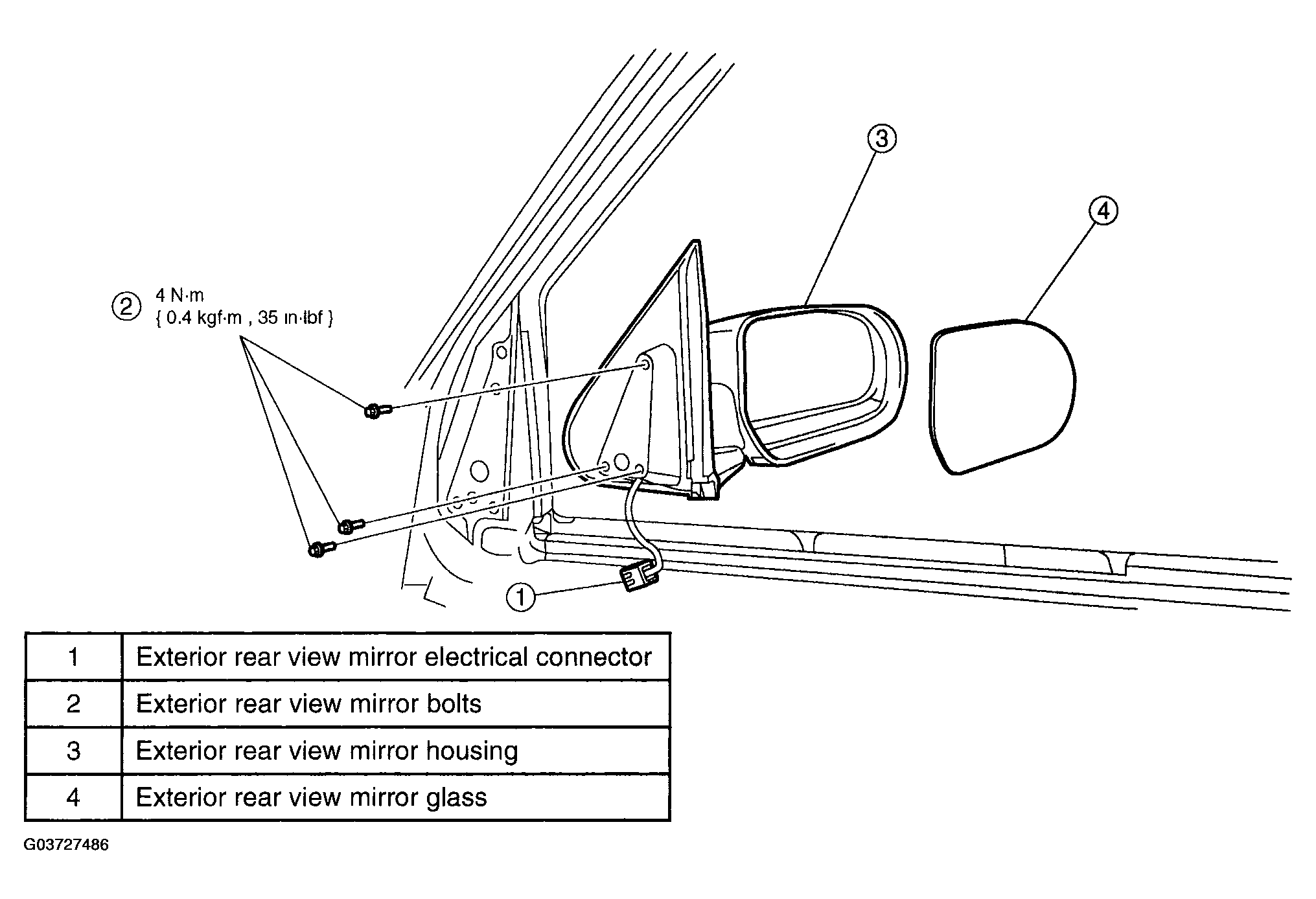

Fig 1: Identifying Exterior Mirror Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
