Interior Mirror: Installation

  1. Place the interior rear view mirror on the windshield bracket. Using the special tool, press the mirror in place until fully seated.

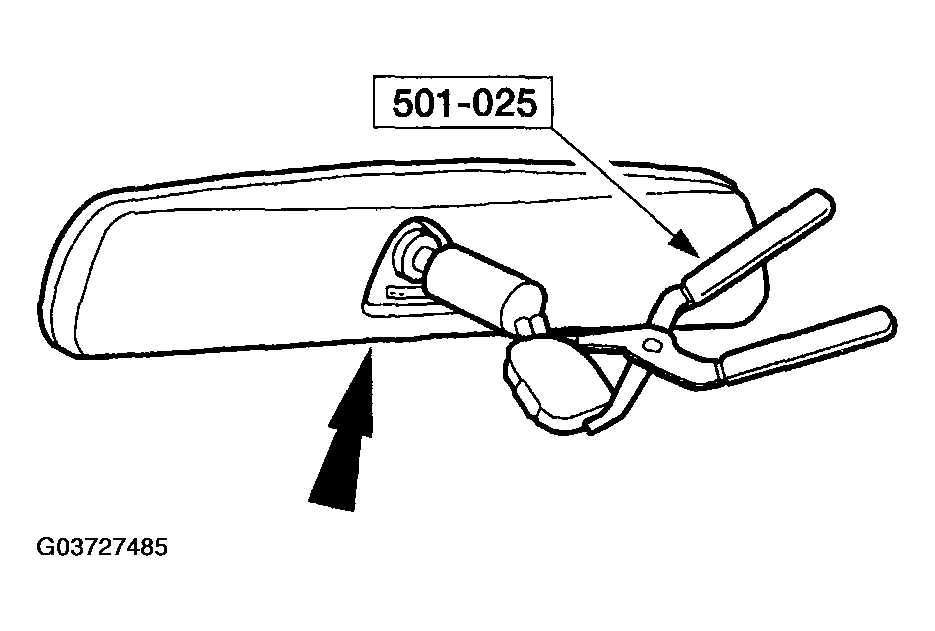

    Fig 1: Installing Interior Rear View Mirror On Windshield Bracket Using Special Tool
    G03727485Courtesy of MAZDA MOTORS CORP.
