Liftgate Window Glass: Notes

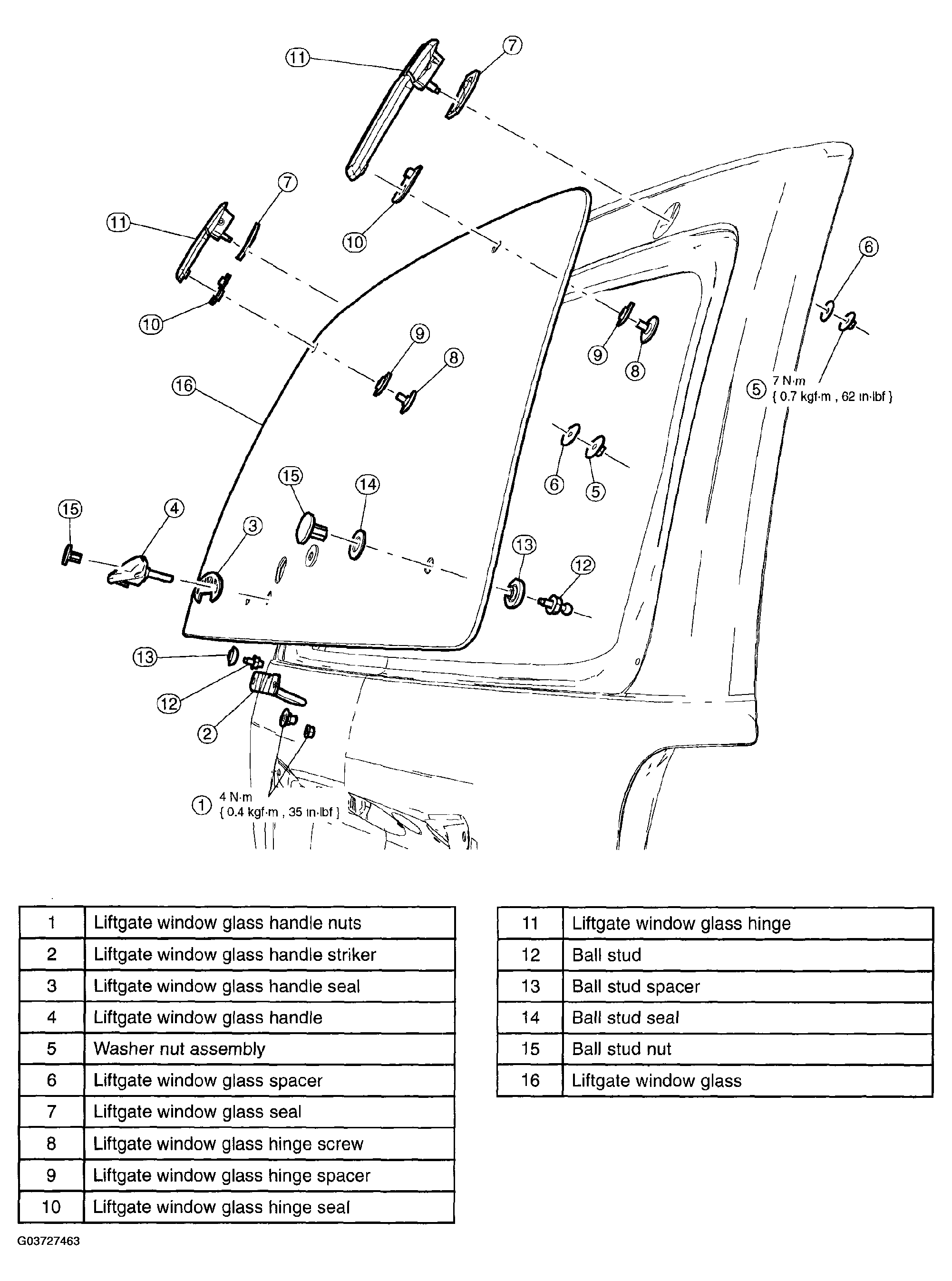

Fig 1: Liftgate Window Glass Replacement Components -- With Torque Specifications
G03727463Courtesy of MAZDA MOTORS CORP.
