Removal and Installation

NOTE:

The removal and installation procedures for all window control switches are similar.

Remove the front door trim panel or the rear door trim panel. See FRONT DOOR TRIM PANEL or REAR DOOR TRIM PANEL .
Release the locking clips and remove the window control switch.

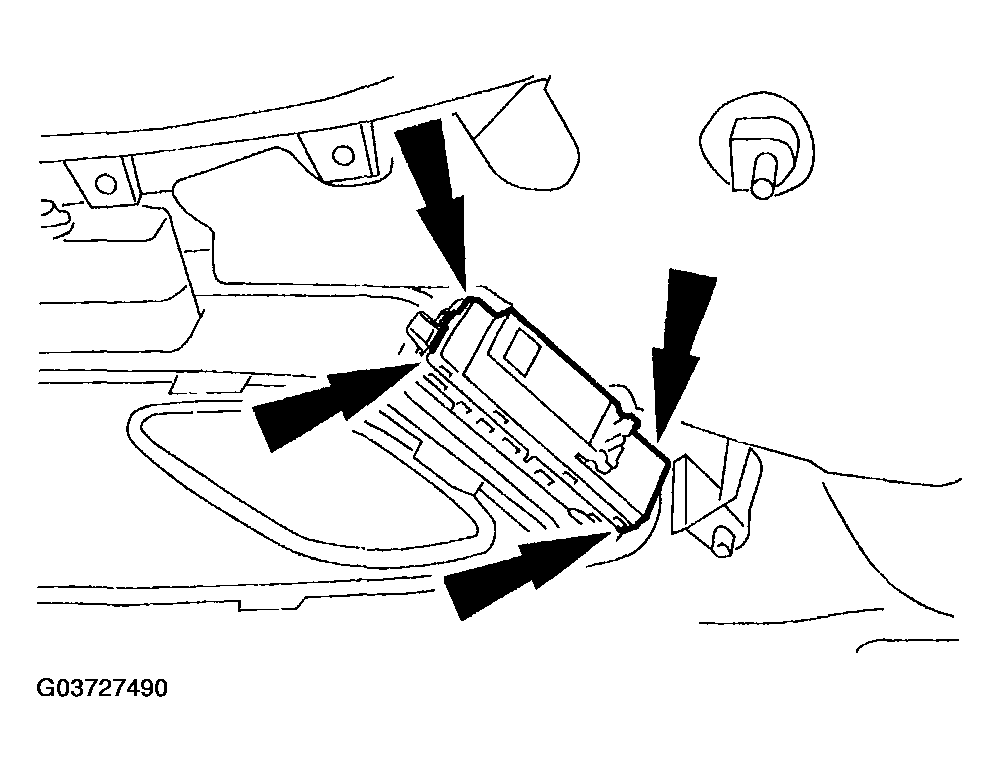

Fig 1: Removing Window Control Switch
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
