California Emission Regulation Applicable Model

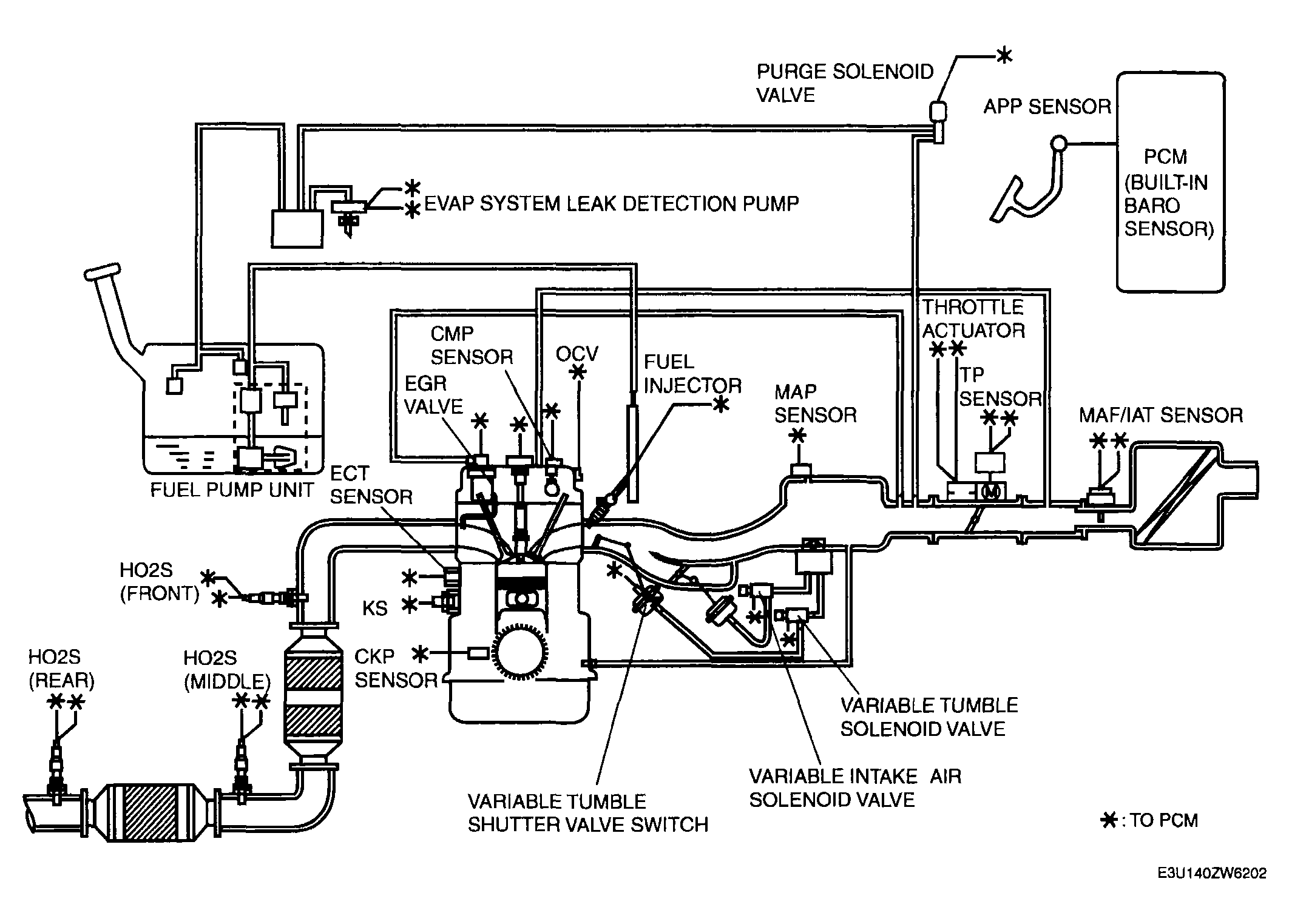

Fig 1: Control System Diagram [LF, L3] - California Emission Regulation Applicable Model
G04313837Courtesy of MAZDA MOTORS CORP.
