Quick Diagnostic Chart

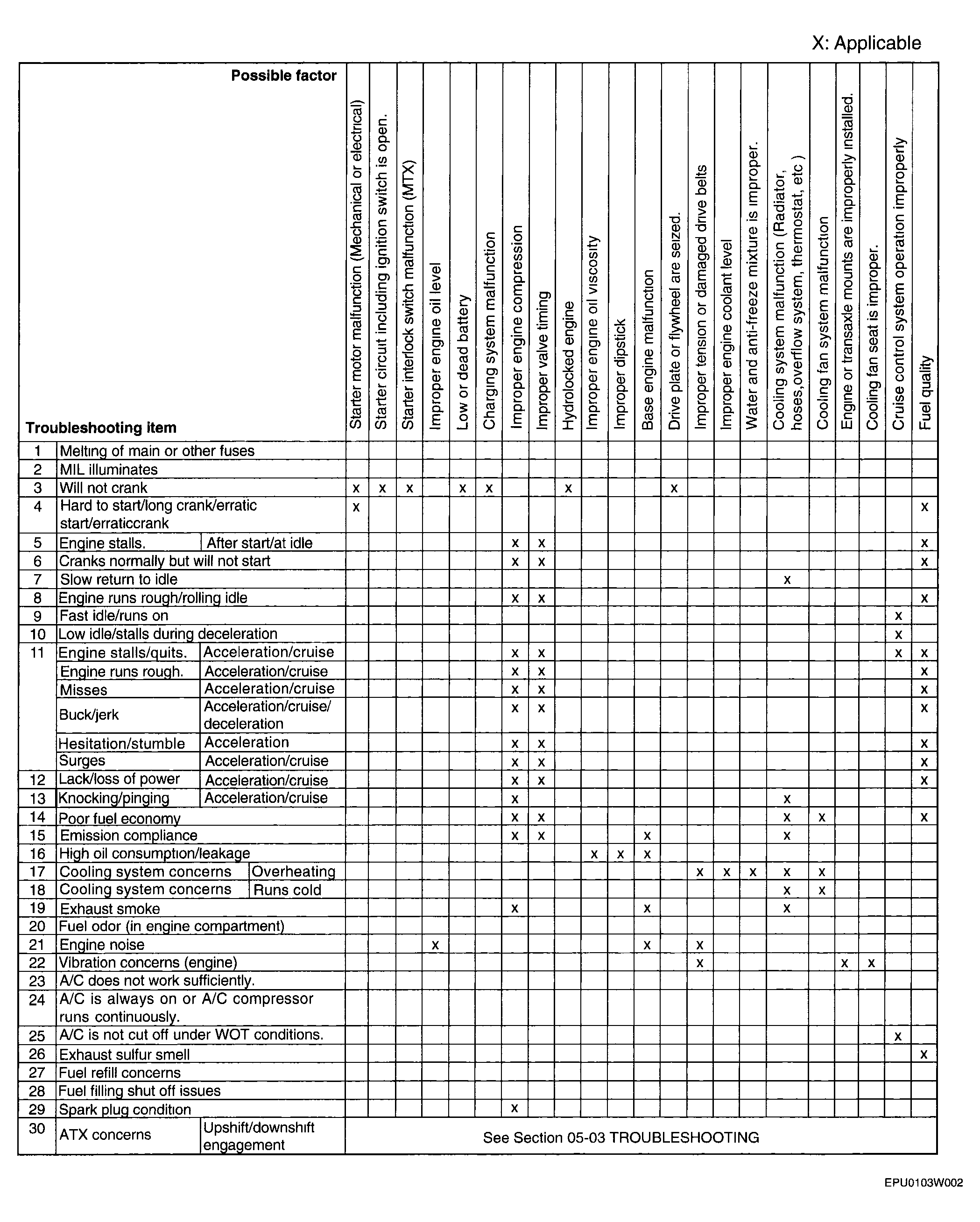

Fig 1: Quick Diagnostic Chart [L3] (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

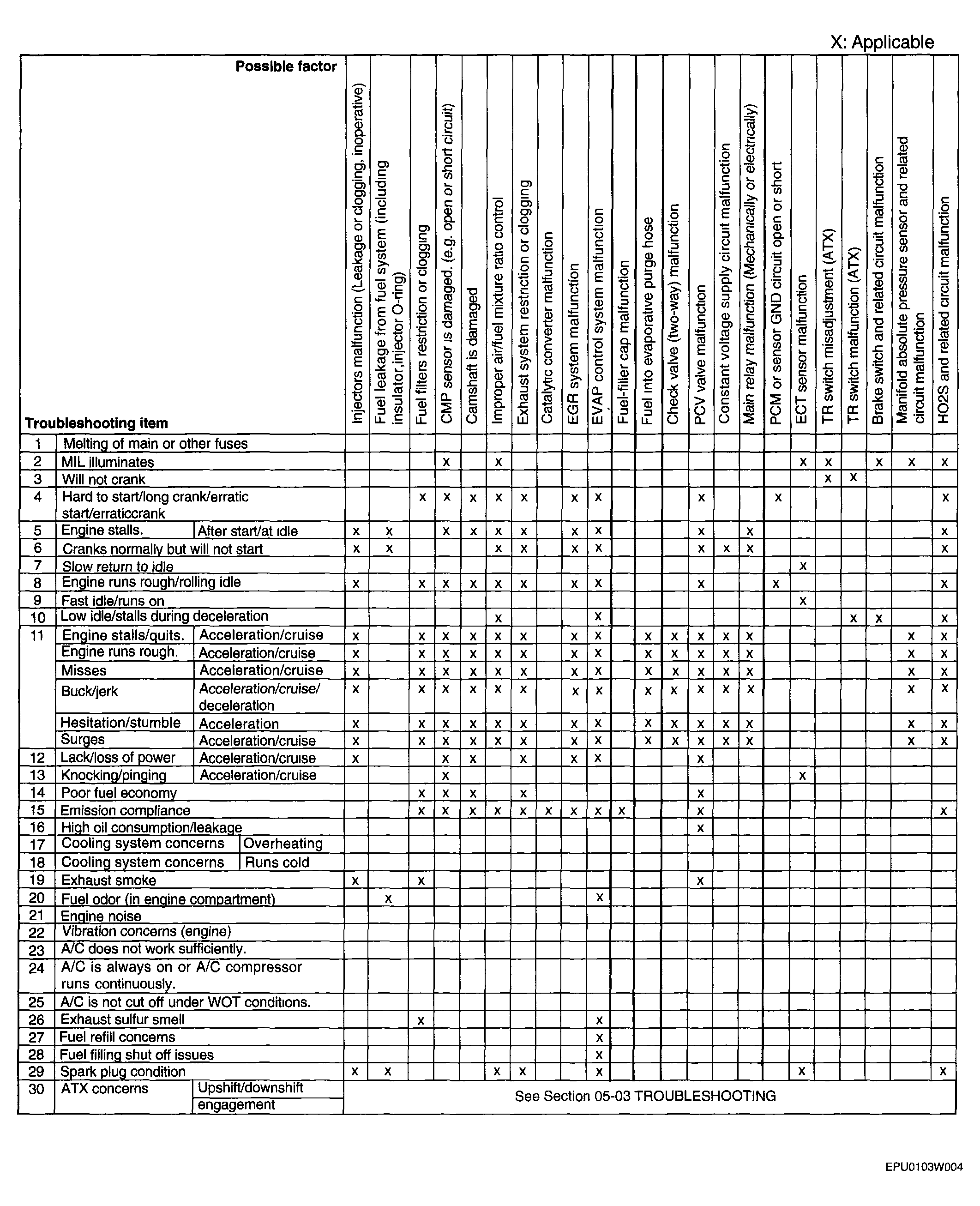

Fig 2: Quick Diagnostic Chart [L3] (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

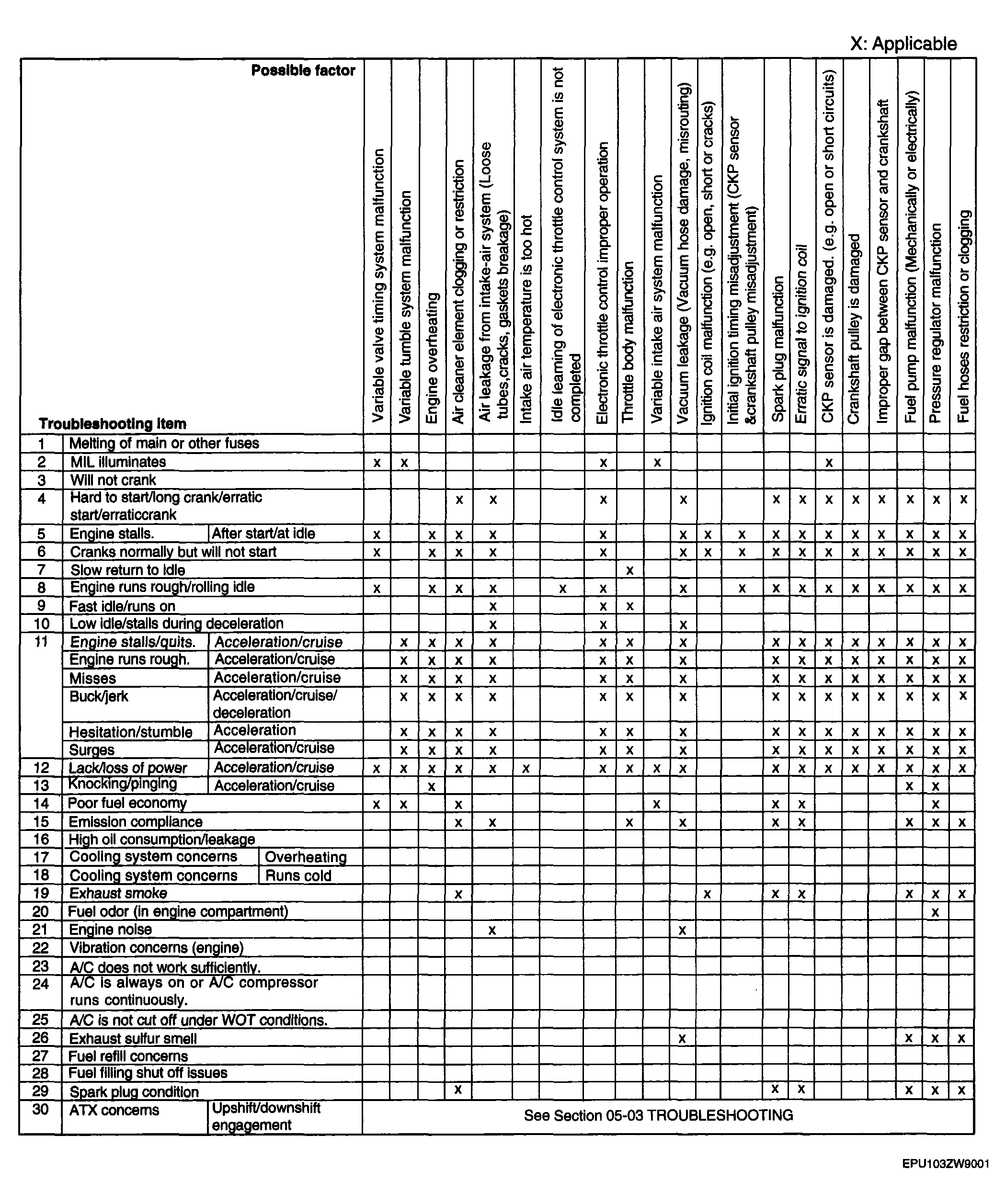

Fig 3: Quick Diagnostic Chart [L3] (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

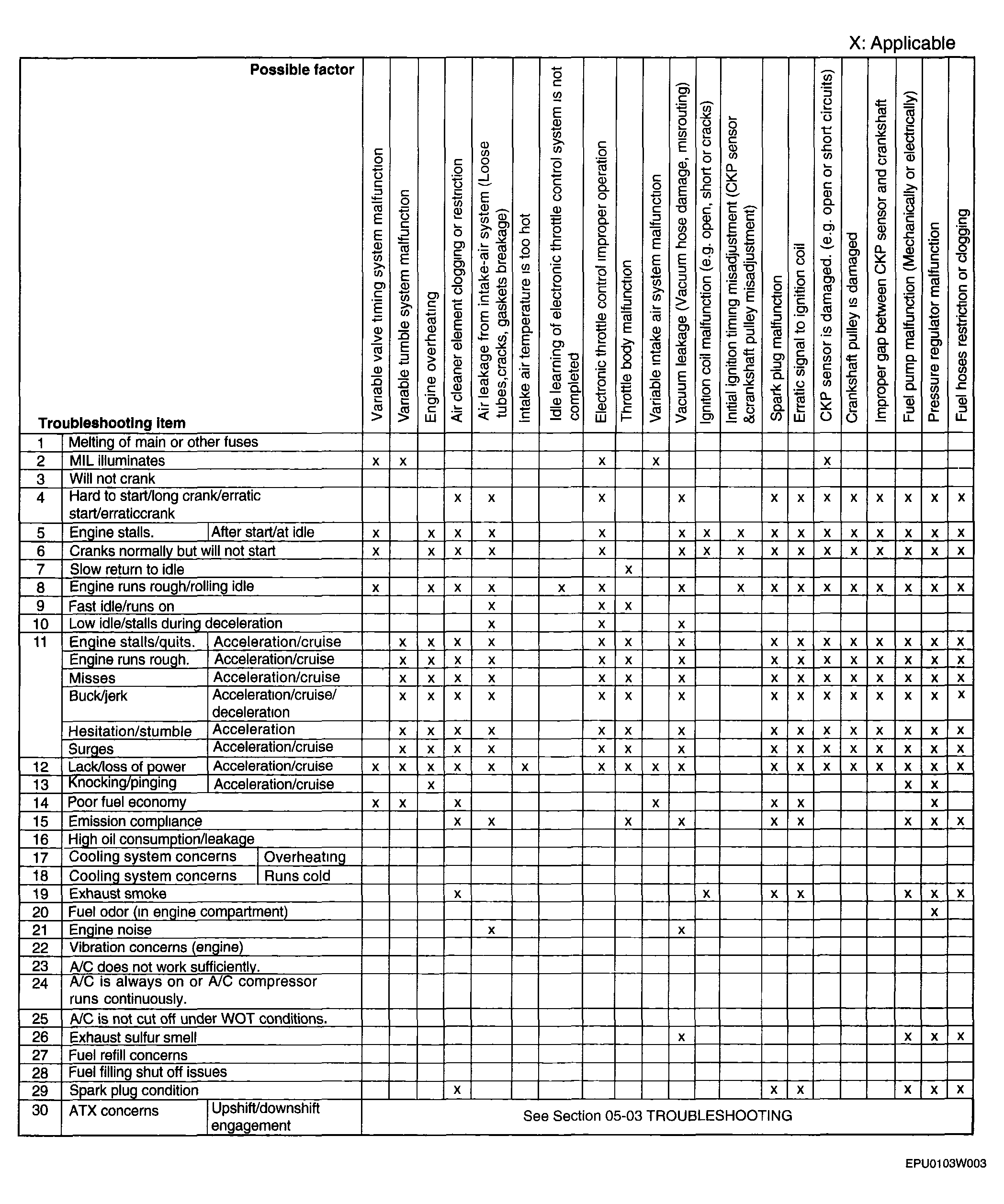

Fig 4: Quick Diagnostic Chart [L3] (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
