Discharge Headlight Control Module RH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

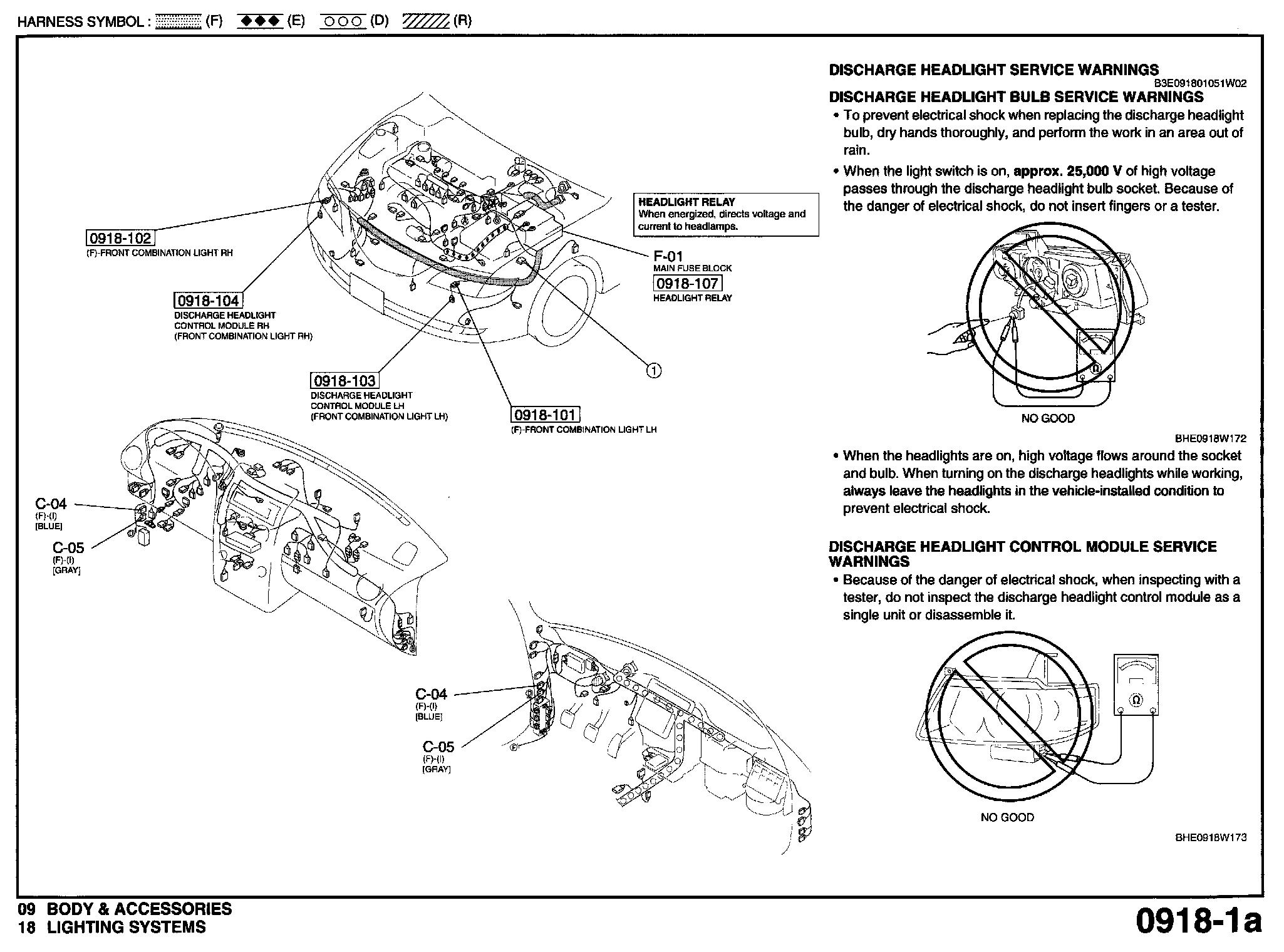

Discharge Headlight Control Module RH
Routing View 0918-1a:
