DTC P0096: Notes

DTC P0096 DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0096	Boost air temperature sensor circuit range/performance problem
DETECTION CONDITION	If the intake air temperature is higher than the engine coolant temperature by 23°C {41.4°F} for 1.2 s with the ignition switch turn to the ON position, the PCM determines that there is a boost air temperature sensor circuit range/performance problem. : Ignition switch on when 6 h or more has passed since the ignition switch was turned off Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. FREEZE FRAME DATA is available. DTCs are stored in the PCM memory.
POSSIBLE CAUSE	Boost air temperature sensor malfunction ECT sensor malfunction Connector or terminal malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P0096

Boost air temperature sensor circuit range/performance problem

DETECTION CONDITION

If the intake air temperature is higher than the engine coolant temperature by 23°C {41.4°F} for 1.2 s with the ignition switch turn to the ON position*, the PCM determines that there is a boost air temperature sensor circuit range/performance problem.

*: Ignition switch on when 6 h or more has passed since the ignition switch was turned off
Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
FREEZE FRAME DATA is available.
DTCs are stored in the PCM memory.

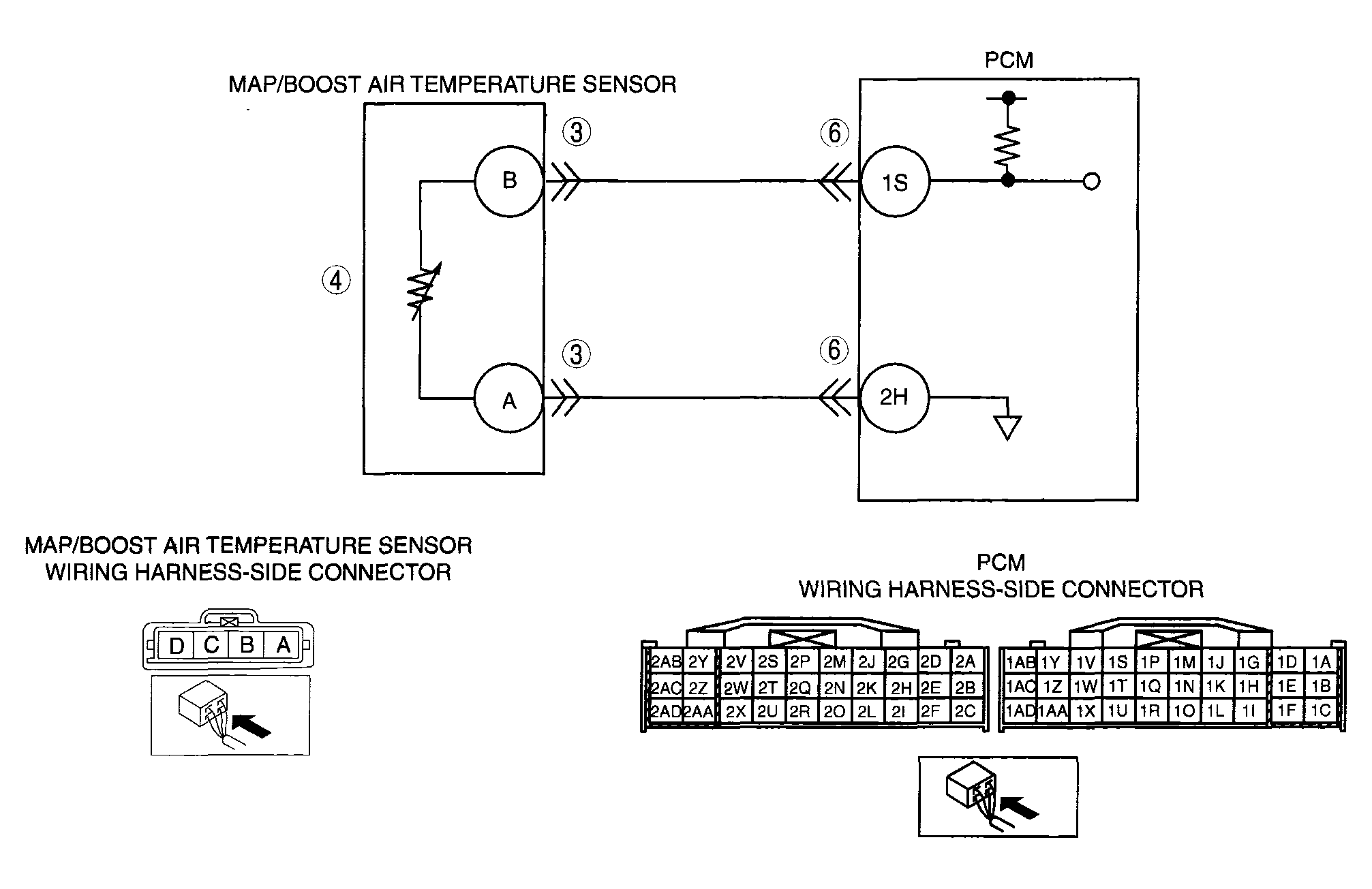

POSSIBLE CAUSE

Courtesy of MAZDA MOTORS CORP.
