DTC P0102: Notes
DTC P0102 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0102 |
MAP circuit low input |
| DETECTION CONDITION |
- PCM monitors input voltage from the MAF sensor when engine is running. If the input voltage is below 0.21 V
, the PCM determines that the MAF circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAF sensor malfunction
- Connector or terminal malfunction

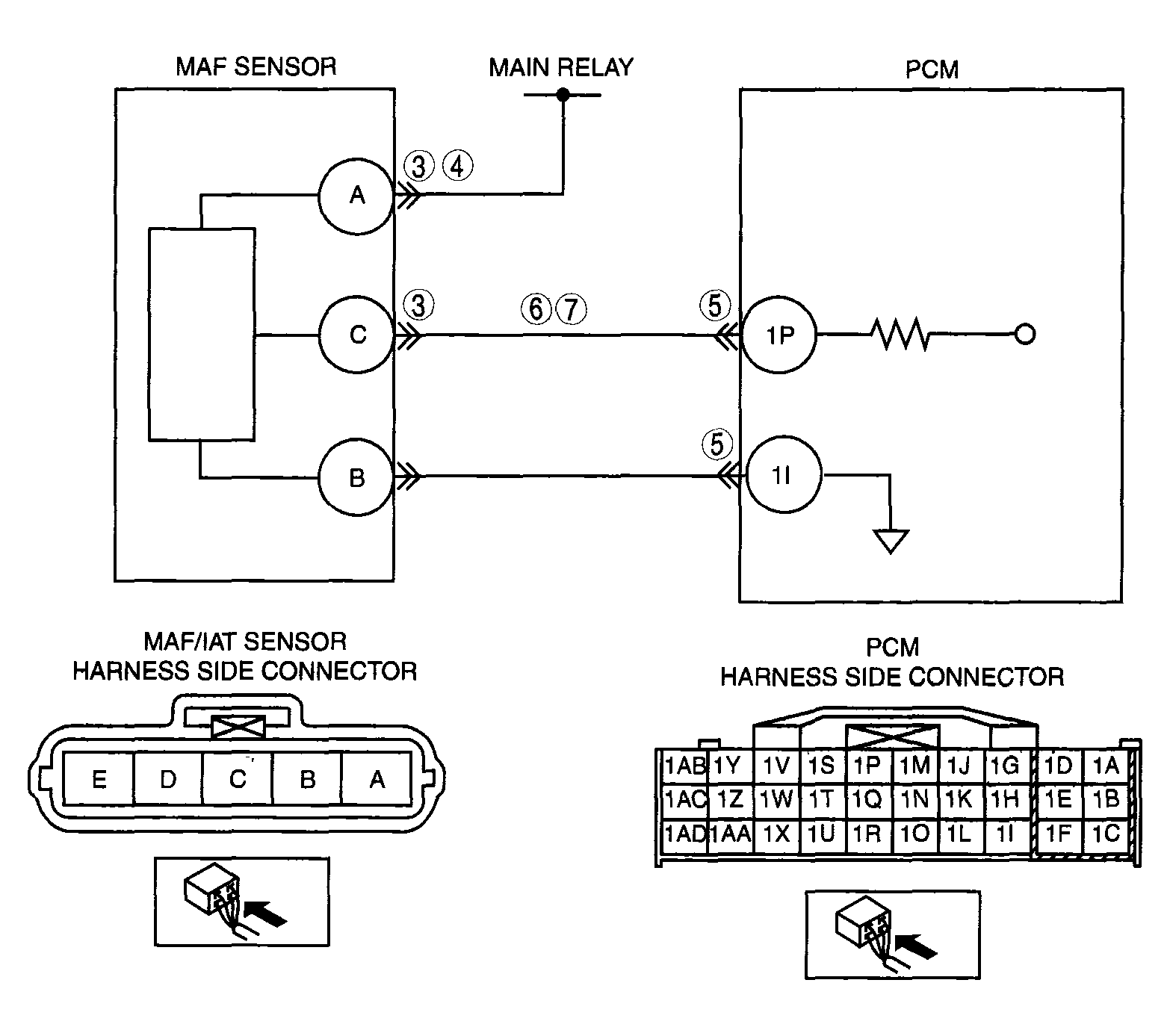

- Short to ground in the wiring harness between MAF/IAT sensor terminal C and PCM terminal 1P
- Open circuit in the wiring harness between MAF/IAT sensor terminal C and PCM terminal 1P
- Open circuit in the wiring harness between main relay and MAF/IAT sensor terminal A
|
 Courtesy of MAZDA MOTORS CORP.
|
