DTC P0107: Notes
DTC P0107 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0107 |
MAP sensor circuit low input |
| DETECTION CONDITION |
- PCM monitors input voltage from the MAP sensor when the intake air temperature is above -10°C {14°F}.
If the input voltage is below 0.10 V
, the PCM determines that the MAP sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in the PCM memory.
|

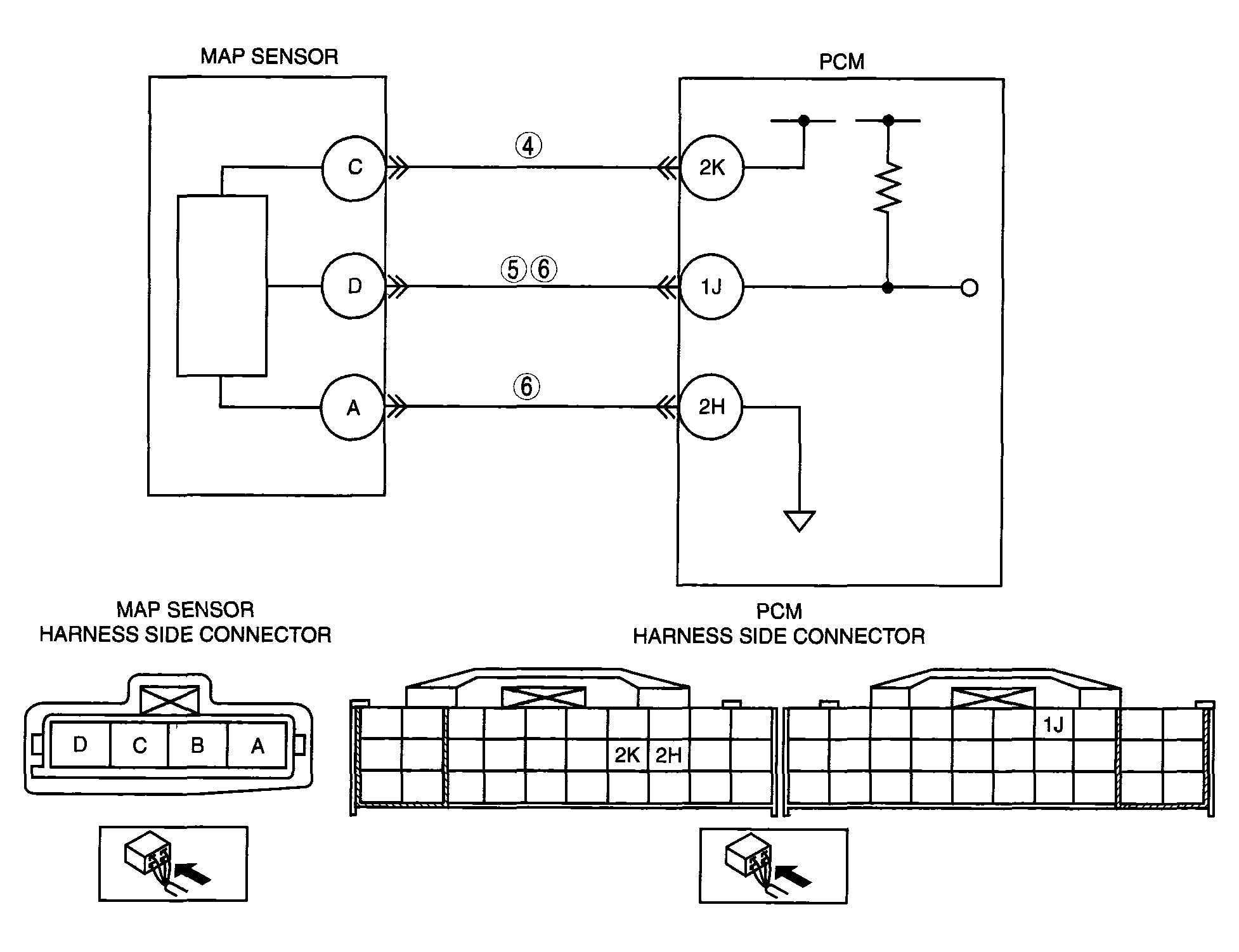

| POSSIBLE CAUSE |
- MAP sensor malfunction
- Connector or terminal malfunction
- Short to ground in the wiring harness between MAP sensor terminal D and PCM terminal 1J
- Open circuit in the wiring harness between MAP sensor terminal C and PCM terminal 2K
- MAP sensor signal circuit and MAP sensor ground circuit are shorted to each other.
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
