DTC P0116: Notes
DTC P0116 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0116 |

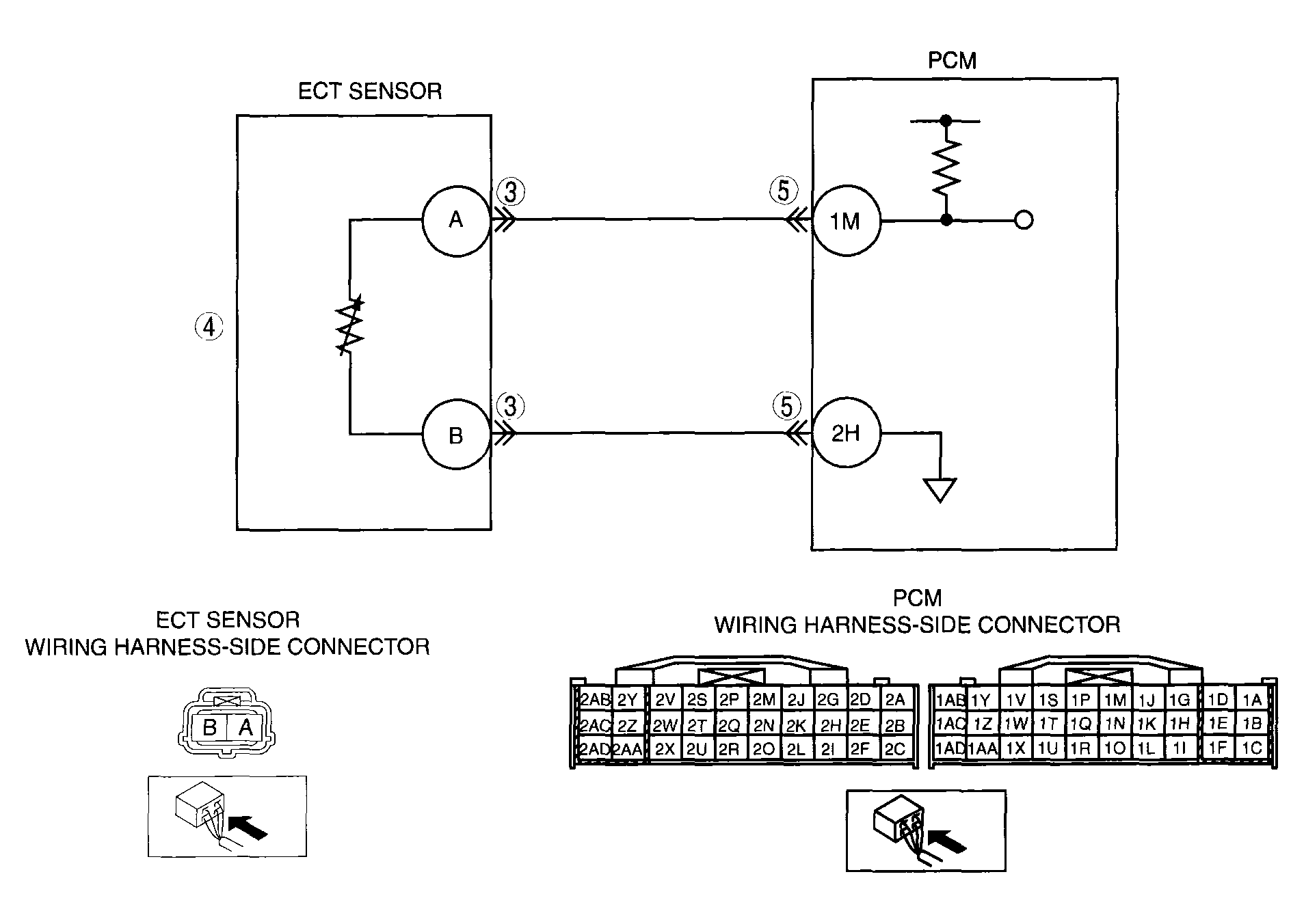

ECT circuit range/performance problem |
| DETECTION CONDITION |
- The PCM monitors the maximum value and minimum value of engine coolant temperature when the engine is started and 5 min
have been passed after leaving the vehicle 6 h or more
. If the difference between the maximum and the minimum values of the engine coolant temperature is below 6°C {10.8°F}
, the PCM determines that there is an ECT circuit range/performance problem.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in the PCM memory.
|
| POSSIBLE CAUSE |
- ECT sensor malfunction
- Connector or terminal malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
