DTC P0122: Notes
DTC P0122 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0122 |
TP sensor No. circuit low input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No. voltage is below 0.2 V
after the ignition switch is turned to the ON position, the PCM determines that TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in the PCM memory.
|
| POSSIBLE CAUSE |
- TP sensor malfunction
- Connector or terminal malfunction

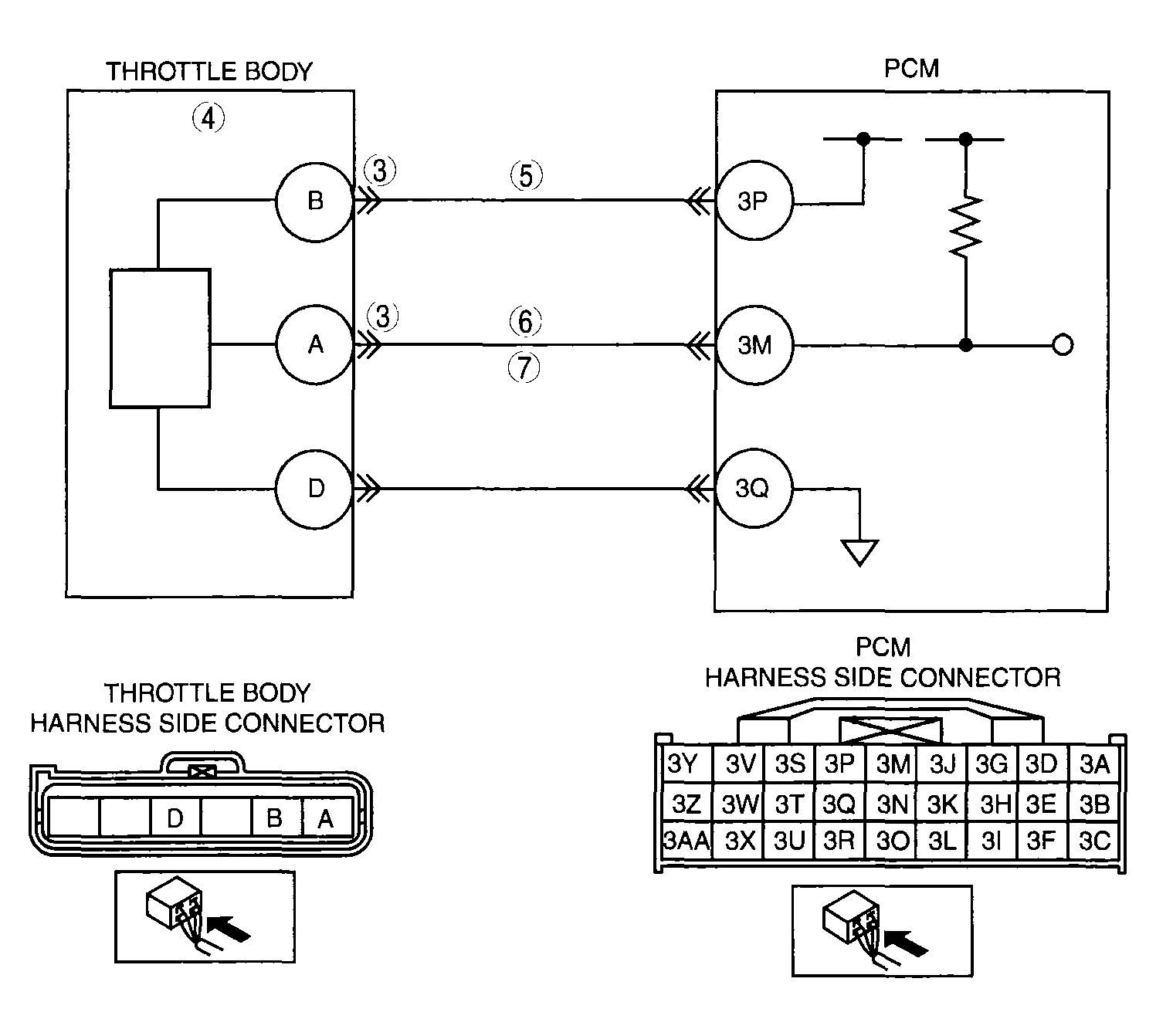

- Short to ground between throttle body terminal A and PCM terminal 3M
- Open circuit between throttle body terminal B and PCM terminal 3P
|
 Courtesy of MAZDA MOTORS CORP.
|
