DTC P2128: Notes
DTC P2128 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2128 |
Accelerator pedal position (APP) sensor No. circuit high input |
| DETECTION CONDITION |
- The PCM monitors the APP sensor No. signal. If the PCM detects that the APP sensor No. voltage is above 4.5 V
, the PCM determines that the APP sensor No. circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in the PCM memory.
|
| POSSIBLE CAUSE |
- TP sensor malfunction
- Connector or terminal malfunction

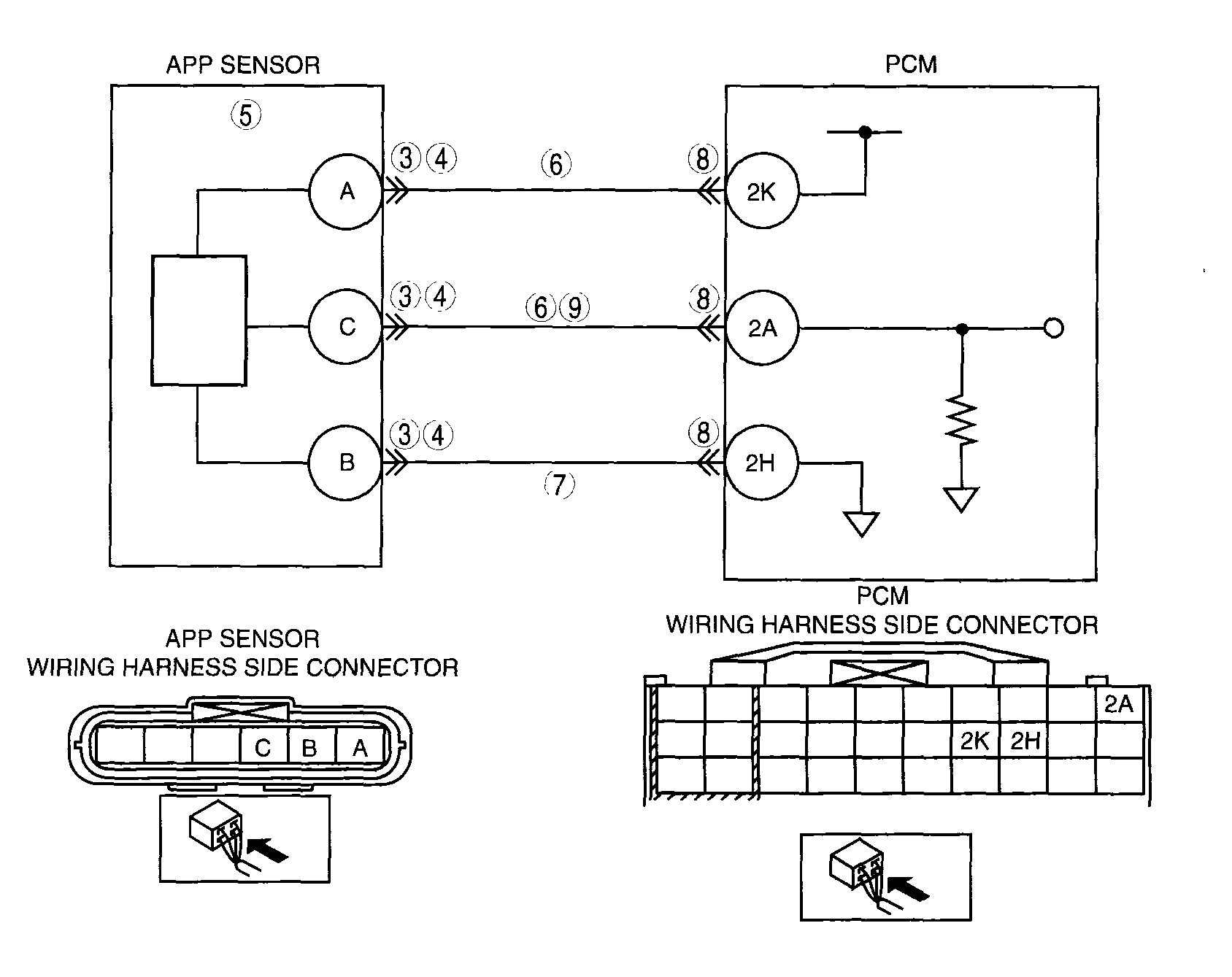

- Open circuit between APP sensor terminal B and PCM terminal 2H
- Open circuit between APP sensor terminal C and PCM terminal 2A
- Short to constant voltage in the supply circuit between APP sensor terminal C and PCM terminal 2A
|
 Courtesy of MAZDA MOTORS CORP.
|
