Monitoring System And Control System Device Relationship Chart

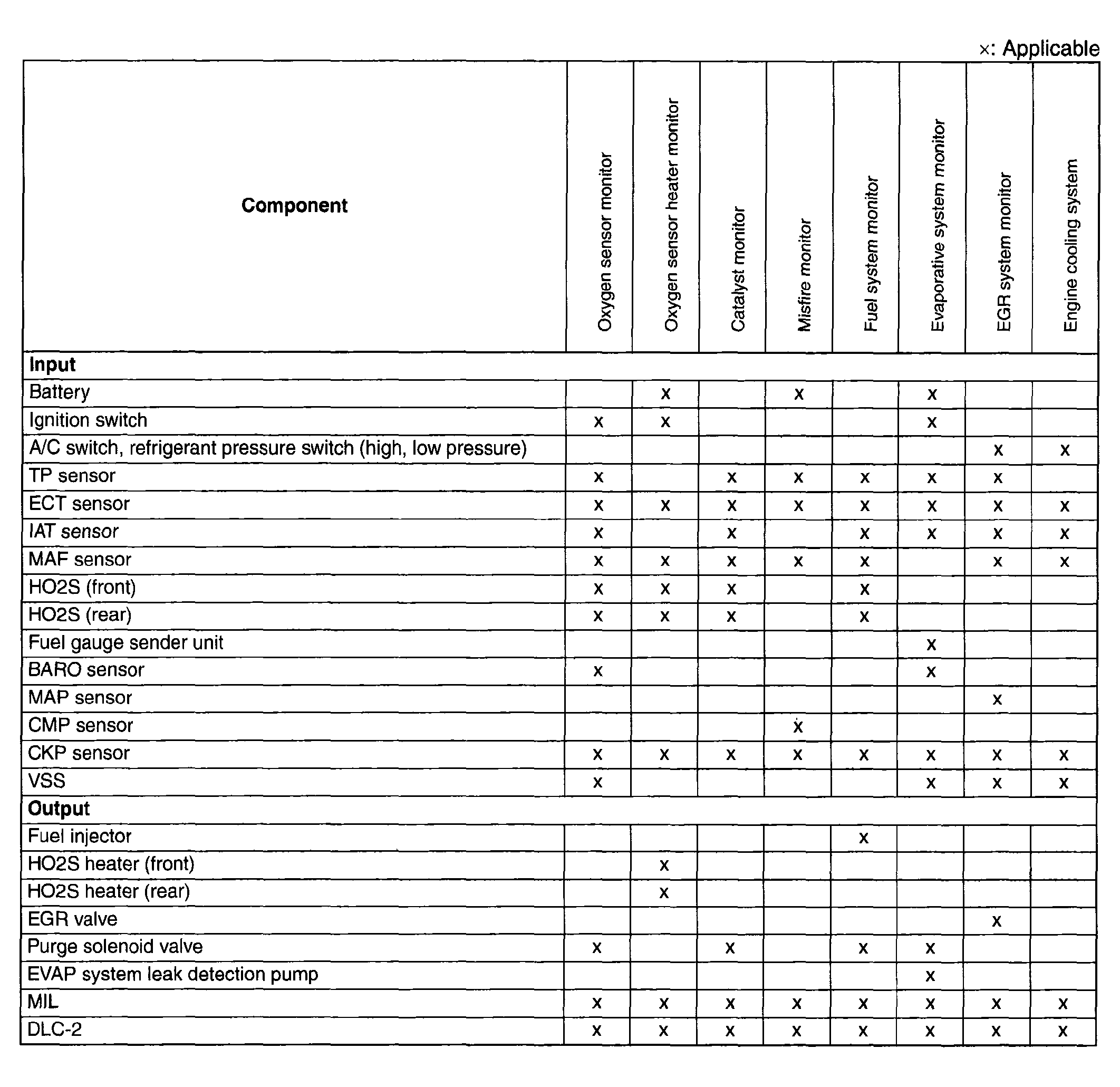

Fig 1: Monitoring System And Control System Device Relationship Chart
G04324070Courtesy of MAZDA MOTORS CORP.
