Guide Assembly Note

  1. Move the guide by hand until it comes to the front stopper.
  2. Move the guide by hand until center of pin comes between mark A and B.

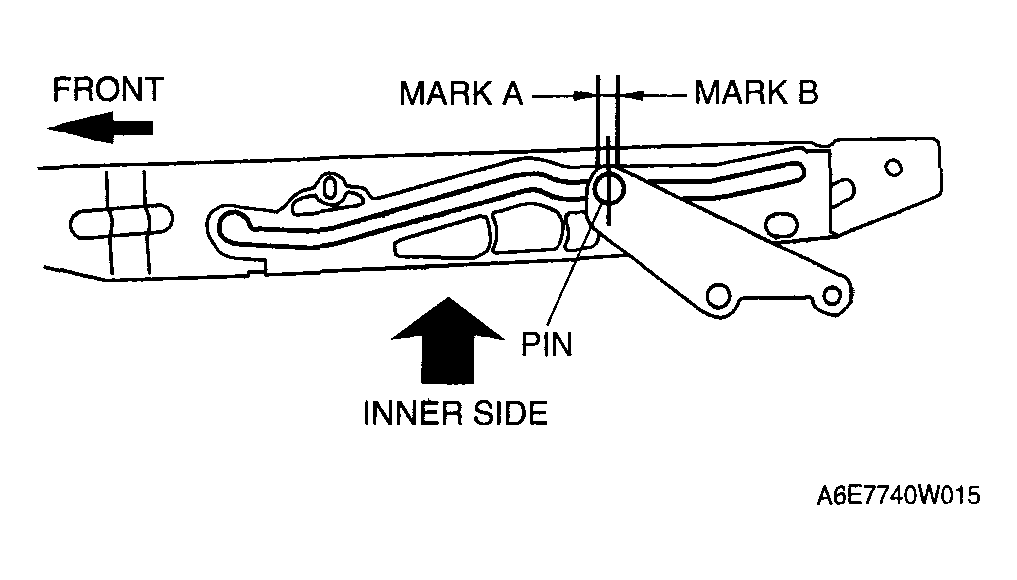

    Fig 1: Moving Guide By Hand Until Center Of Pin Comes Between Mark
    G04327401Courtesy of MAZDA MOTORS CORP.
