Axle And Differential Front Disassembly / Assembly: Notes

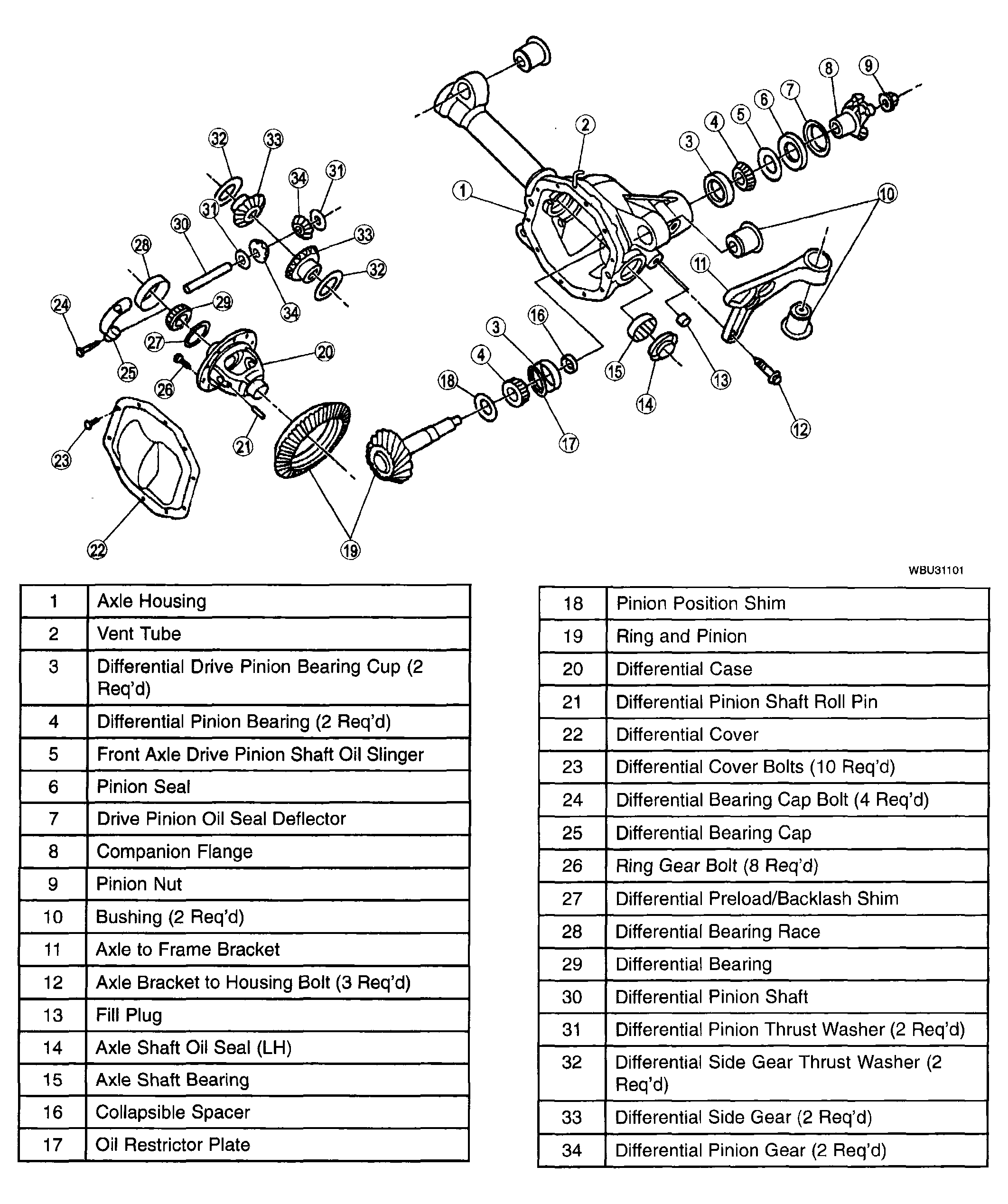

Fig 1: Disassembling/Assembling Axle And Differential Front
G04308863Courtesy of MAZDA MOTORS CORP.
