Wiper Run/Park Relay Connector End View (C1002)

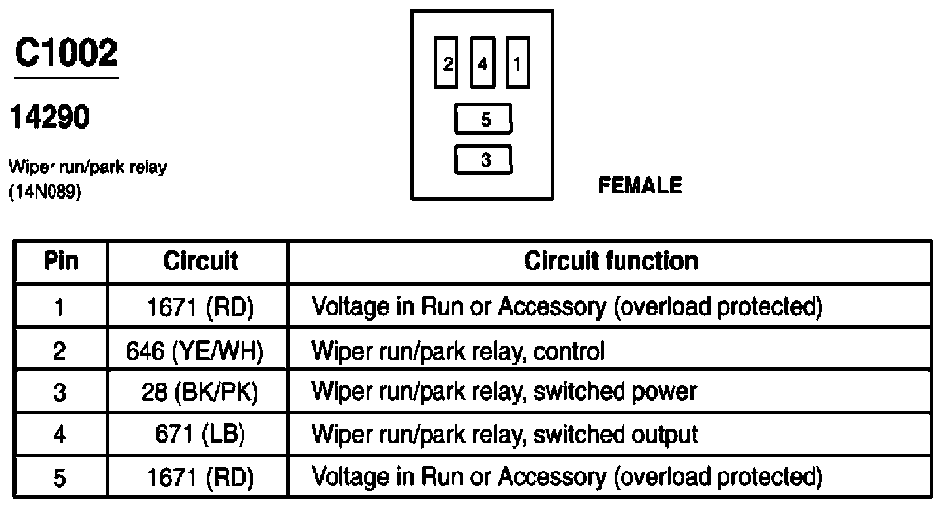

Fig 1: Wiper Run/Park Relay Connector End View (C1002)
G07847679Courtesy of FORD MOTOR CO.
