Door Lock Switch Inspection

Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the door lock switch terminals using an ohmmeter.
- If not as specified, replace the door lock switch.

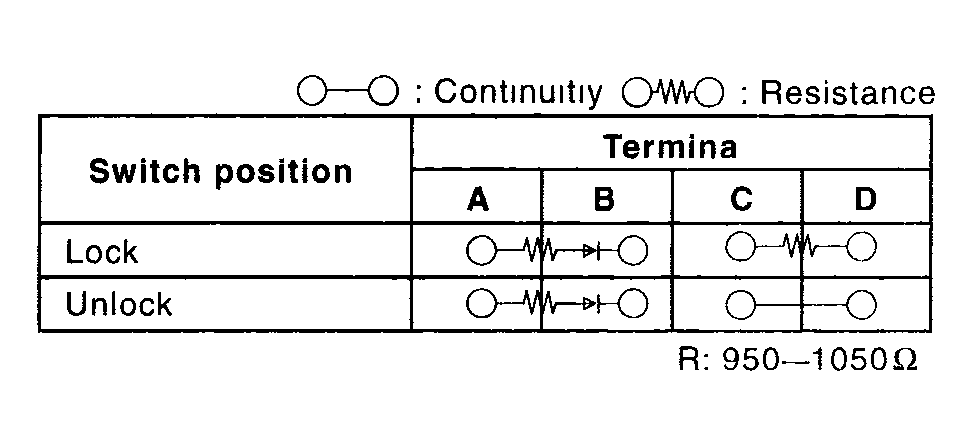

Fig 1: Door Lock Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

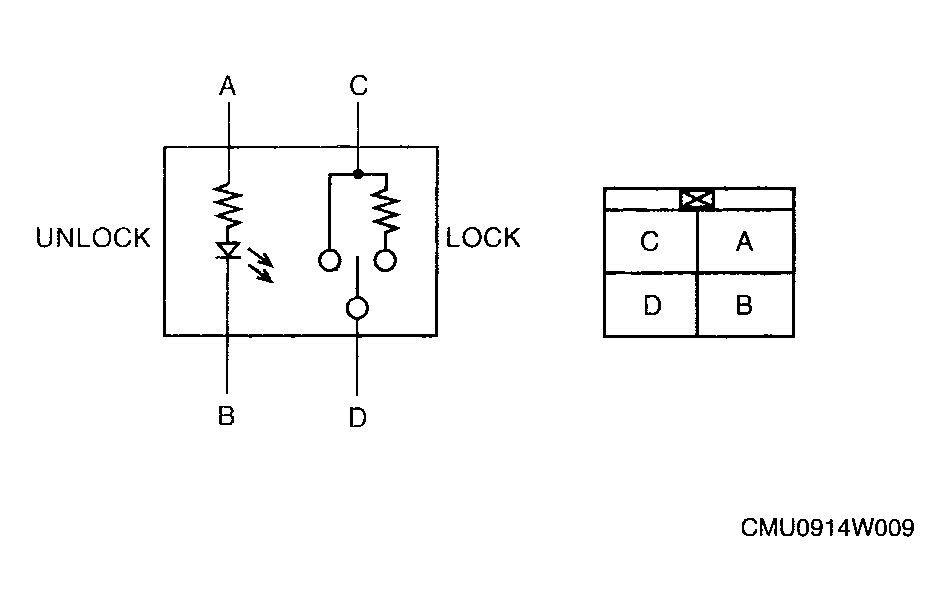

Fig 2: Door Lock Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
