Transmitter Id Code Registration

When programming the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
Program the ID code as indicated in the procedure below.

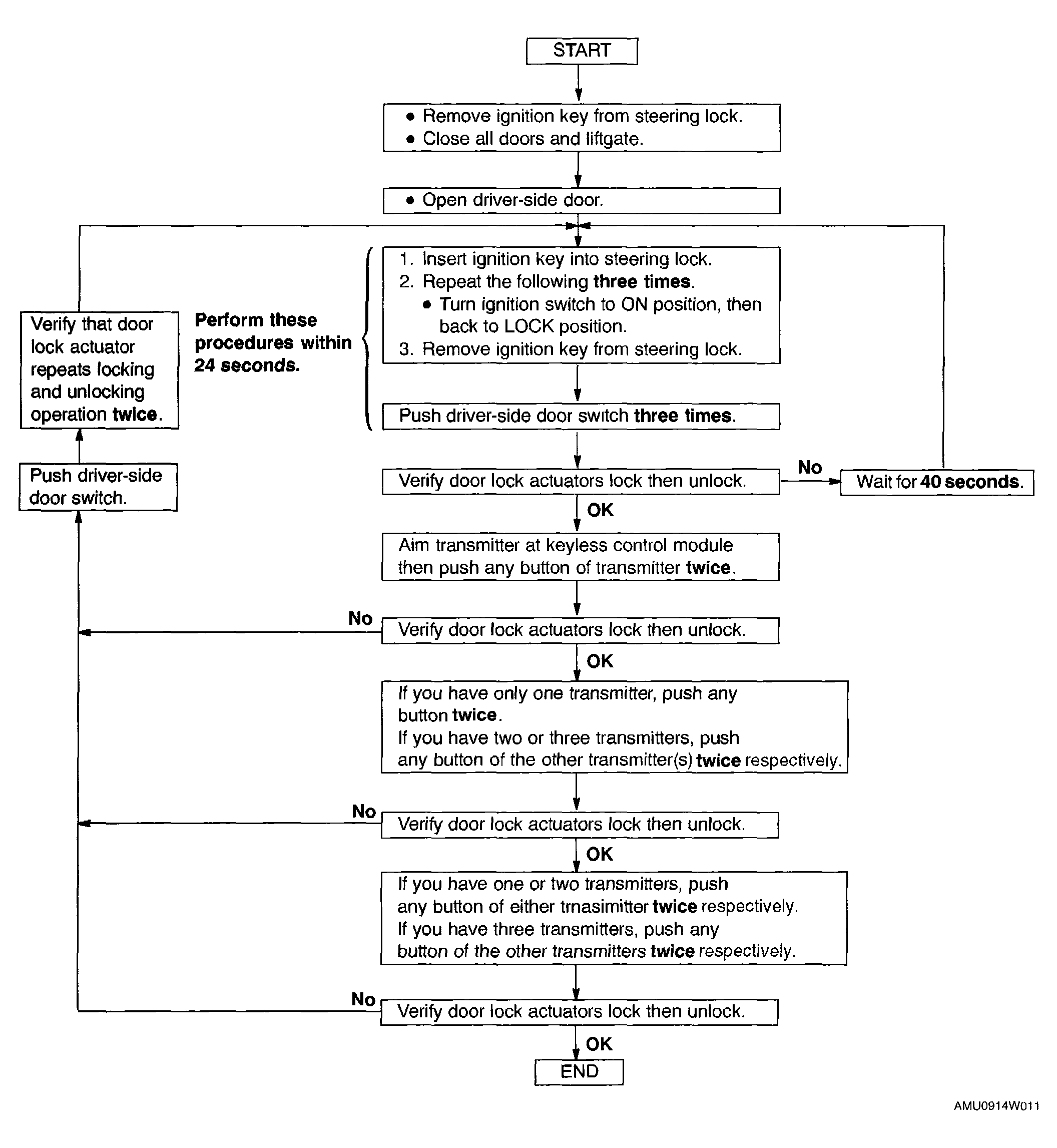

Fig 1: Transmitter ID Code Registration Flow Chart

Courtesy of MAZDA MOTORS CORP.
