Short circuit

If there is continuity, the circuit is shorted. Repair or replace the harness.
- TP sensor terminal A (harness-side) and power supply
- TP sensor terminal B (harness-side) and power supply
- TP sensor terminal B (harness-side) and body ground
- TP sensor terminal C (harness-side) and power supply
- TP sensor terminal C (harness-side) and body ground

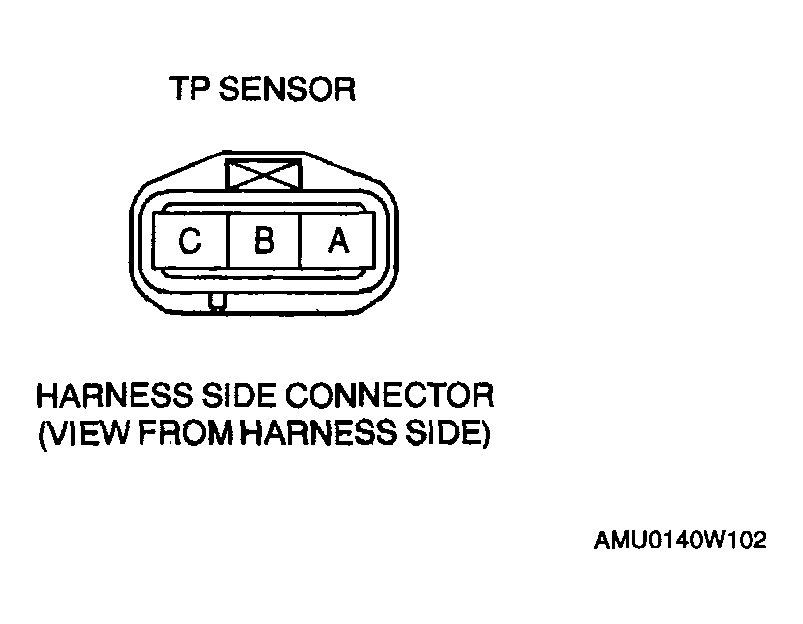

Fig 1: Identifying TP Sensor Connector

G04328332

Courtesy of MAZDA MOTORS CORP.
