DTC B2170 [Advanced Keyless System]: Notes

DTC B2170 POSSIBLE CAUSE TABLE

DTC B2170	Push switch.
DETECTION CONDITION	Detect the push switch OFF signal when ignition switch is ON position./IT>

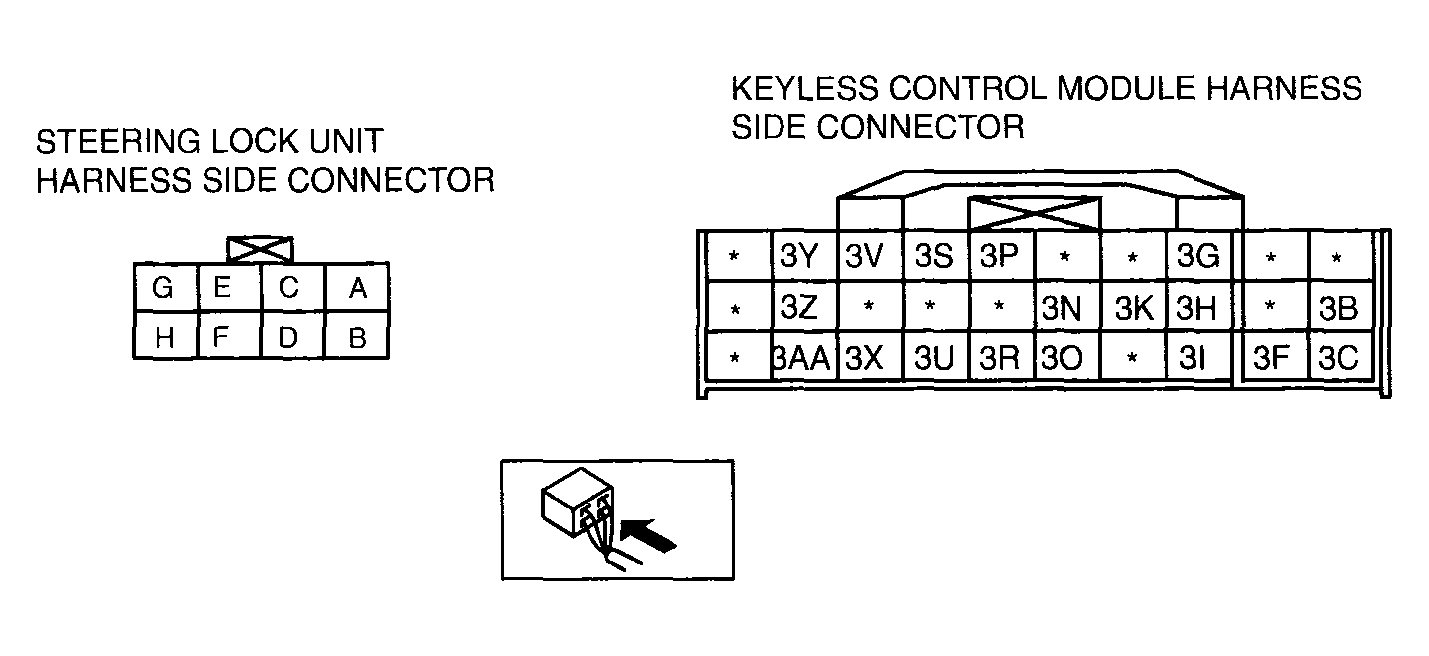

POSSIBLE CAUSE	Steering lock unit malfunction Open or short circuit in wiring harness between keyless control module and steering lock unit Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
