DTC B1093 [Advanced Keyless System]: Notes

DTC B1093 POSSIBLE CAUSE TABLE

DTC B1093 Unprogrammed steering lock unit.
DETECTION CONDITION
  • Unprogrammed steering lock unit.
POSSIBLE CAUSE
  • Steering lock unit malfunction
  • Open or short circuit in wiring harness between keyless control module and steering lock unit
  • Keyless control module malfunction

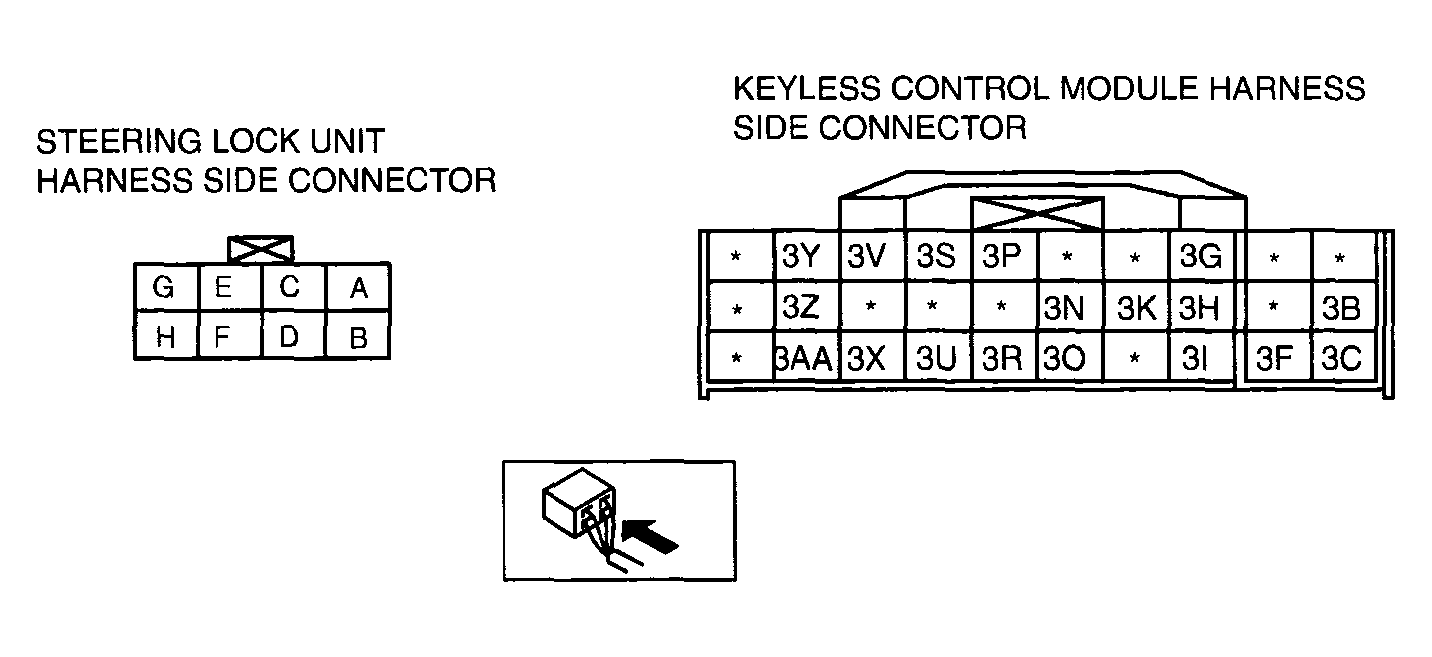

G04323305Courtesy of MAZDA MOTORS CORP.
