Customized Function Setting Procedure [With Advanced Keyless System]

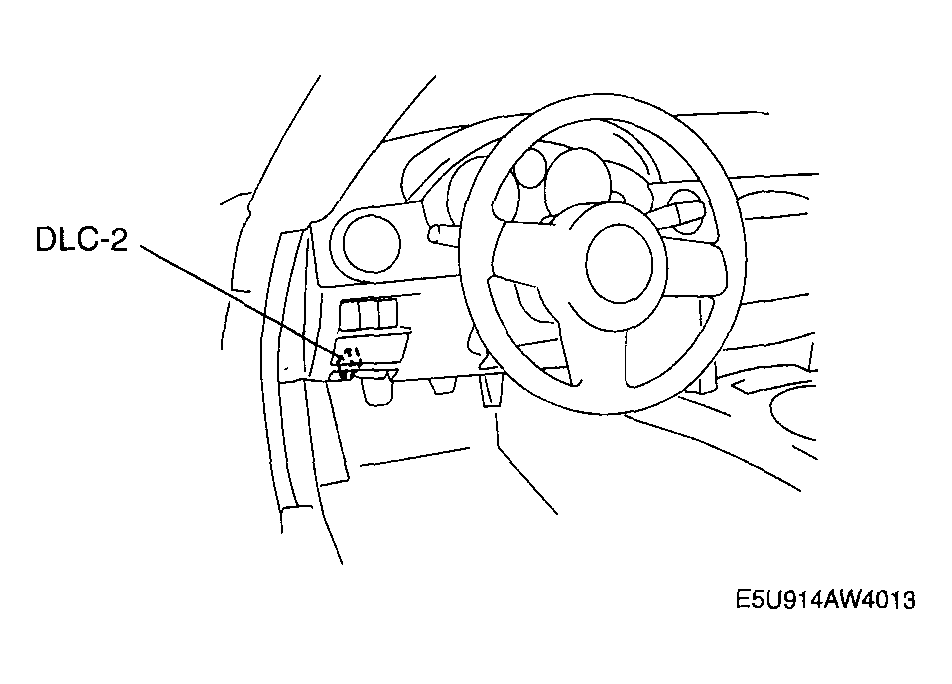

Fig 1: Locating DLC-2 Connector

Courtesy of MAZDA MOTORS CORP.

Select "Module Programming".
Select "Programming change available parameter/RKE".
Select the item name, and than select either "Disable/Enable".
Items
- Automatic Lock
- Answer Back Buzzer
- Low Battery Warning
