Immobilizer System Location Index [Advanced Keyless System]

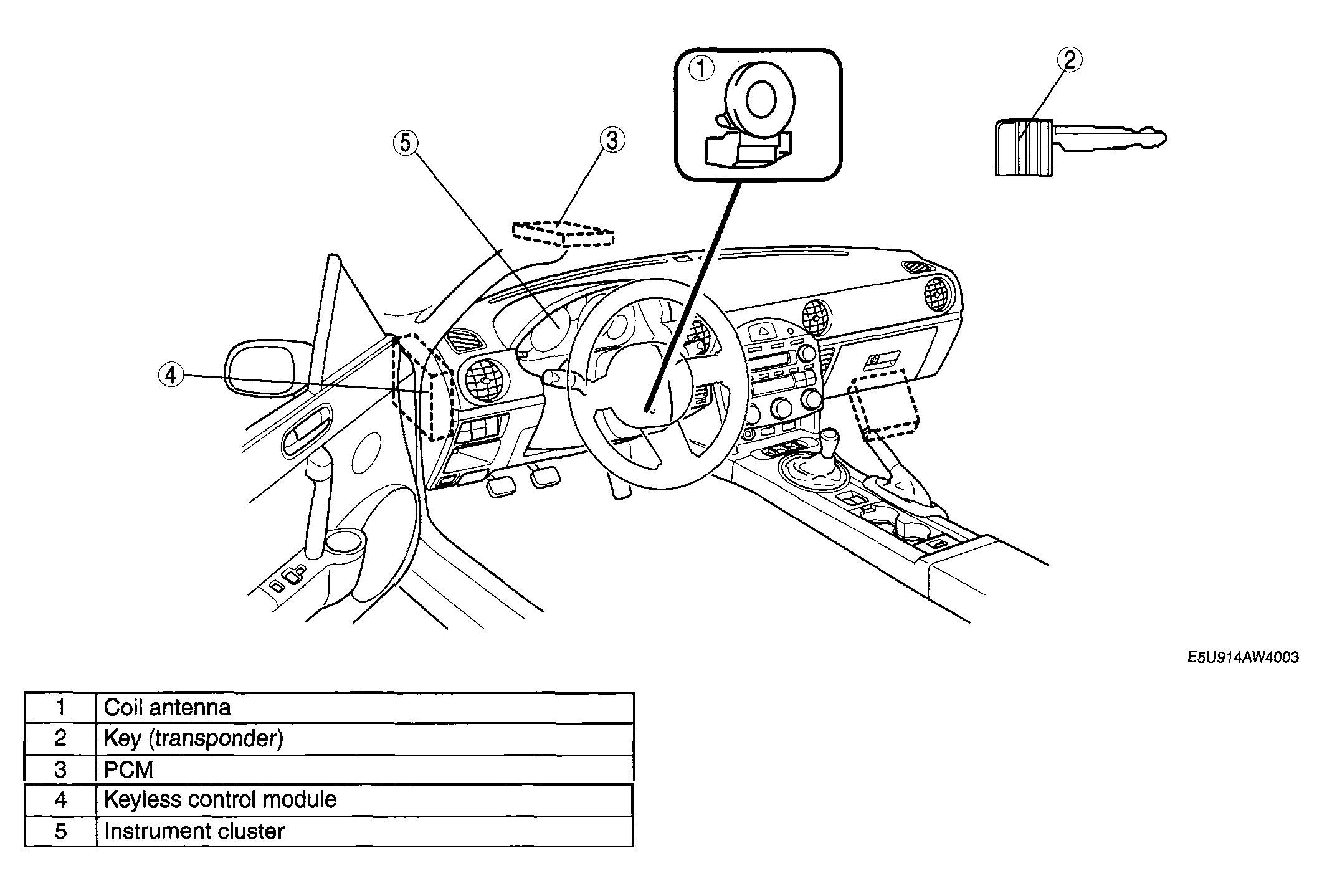

Fig 1: Identifying Location Of Immobilizer System Components
G04323496Courtesy of MAZDA MOTORS CORP.
