Keyless Receiver Removal/Installation: Front

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the glove compartment lid. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the keyless receiver module connector.
  4. Remove the nut, then remove the keyless receiver (front).

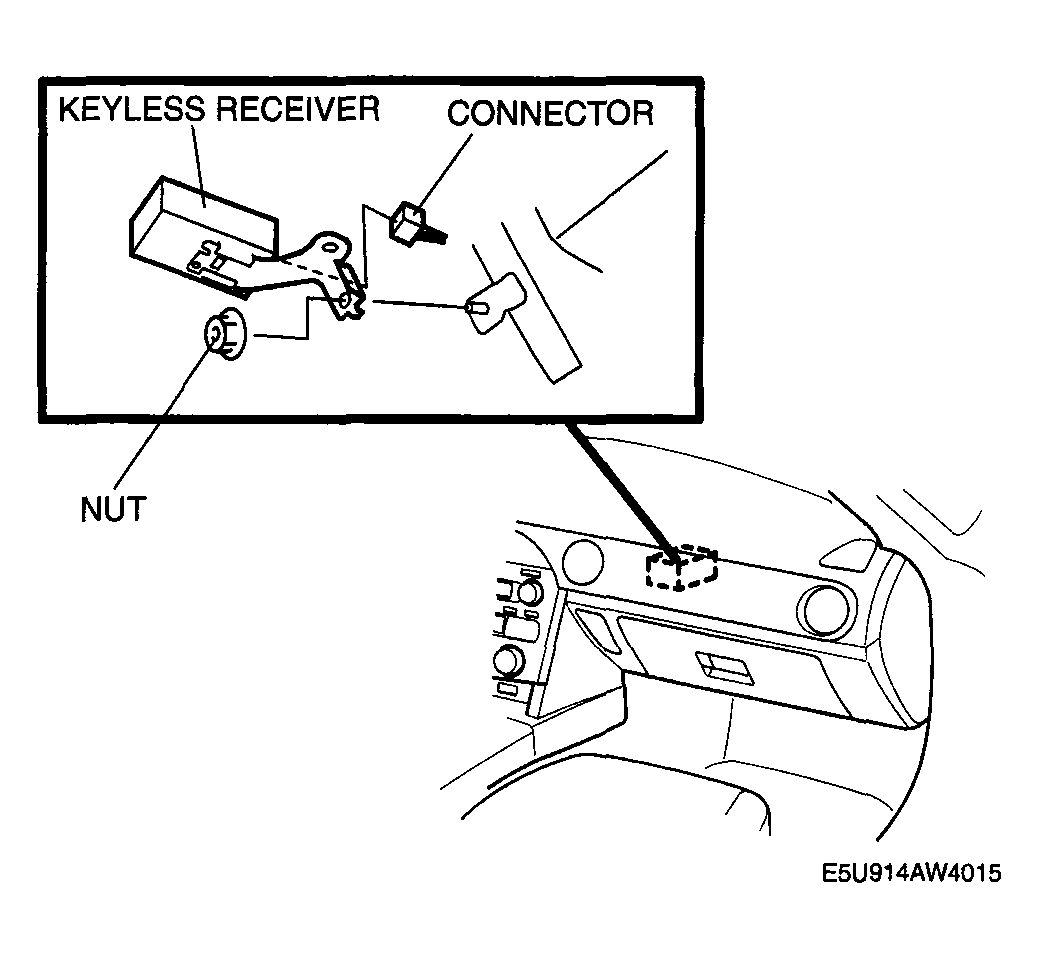

    5. Fig 1: Removing/Installing Keyless Receiver - Front
    G04323538Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
